Rack-and-pinion steering gear, location/task/design/function - GF46.20-P-1000T
MODEL 211 except CODE (213a) Speed-sensitive power steering

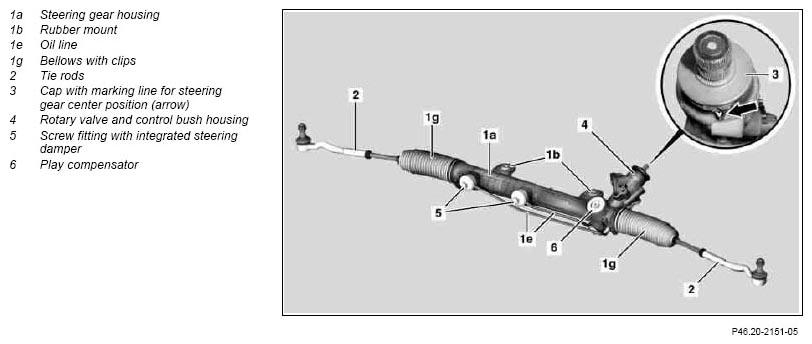

| Rack-and-pinion steering gear, location | GF46.20-P-1000-02T | |
| Rack-and-pinion steering gear, task | Transmits the steering movements from the steering wheel to the road wheels. Assists the manual steering force, thus making it easier to steer the vehicle. | |
| Rack-and-pinion steering gear, design | An automatic play compensator (6), the steering dampers (5) and the tie rods (2) are integrated in the steering gear of the rack-and-pinion steering. | |
| Rack-and-pinion steering gear, function | GF46.20-P-1000-01T |
