Components rear seat cushion pivot bearing - AR91.12-P-1770TA

MODEL 211.2

Shown on right rear seat

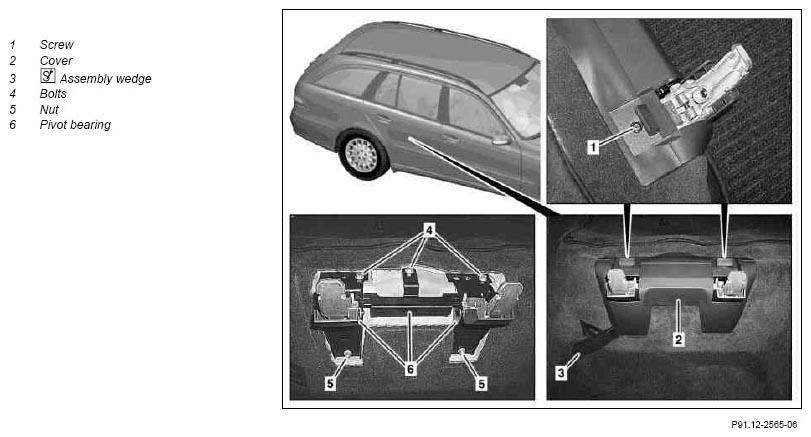

Fig 1: Identifying Rear Seat Cushion Pivot Bearing Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove left or right rear seat cushion		AR91.12-P-1020TB
2	Unscrew screws (1) from top of cover (2)
3	Unclip cover (2) using mounting wedge (3) and remove from above	Installation:  Ensure correct seating of the cover (2).	*110589035900
4	Unscrew screws (4) from pivot bearing (6)		*BA91.12-P-1007-02A
5	Unscrew nuts (5) at pivot bearing (6)		*BA91.12-P-1014-02A
6	Remove pivot bearing (6)	Pivot bearing (6) is in three parts.
7	Install in the reverse order

REAR SEAT BACKREST

Number	Designation		Model 211.2
BA91.12-P-1007-02A	Screw, rear seat cushion pivot bearing to crossmember	Nm	6
BA91.12-P-1014-02A	Nut, rear seat cushion pivot bearing to crossmember	Nm	6

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
