Stationary heater switch, location/task - GF83.70-P-4056T

MODEL 211.0/2/6 with CODE (228) Stationary heater

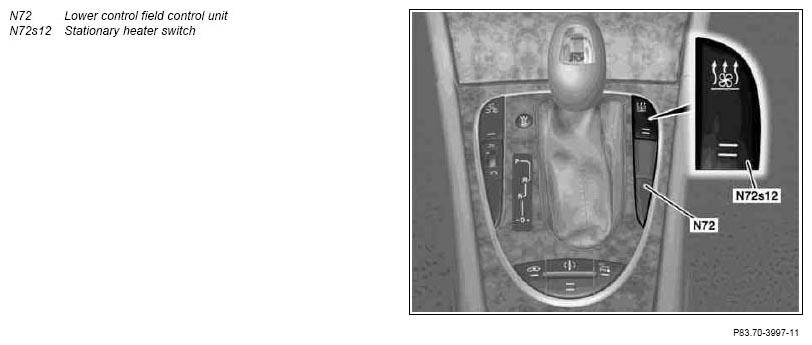

Fig 1: Identifying Stationary Heater Switch And Lower Control Field Control Unit
G07286102Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Stationary heater switch position The stationary heater switch (N72s12) is located in the lower control panel control unit (N72).
Stationary heater switch task   GF83.70-P-4056-02T
