Heat exchanger shut-off motor, location/task/function - GF83.20-P-2112T
MODELS 211.0/2/6
Shown on model 211.0

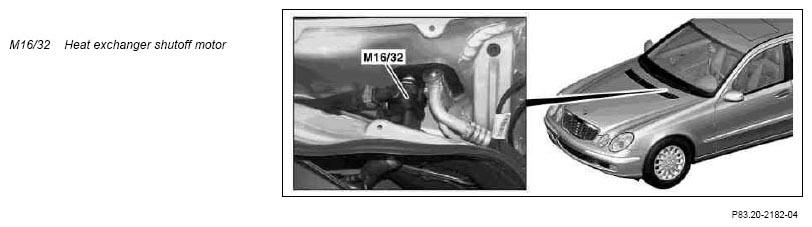

| Heat exchanger shut-off motor, position | The heat exchanger shutoff motor (M16/32) is located in the left rear side of the engine compartment. | |
| Heat exchanger shut-off motor, task | The heat exchanger shut-off motor (M16/32) regulates the flow of temperature-controlled coolant to the heat exchanger. | |
| Heat exchanger shut-off motor, function | GF83.20-P-2112-01T |
