Blower, location/task/function - GF83.10-P-2140T

MODELS 211.0/2/6

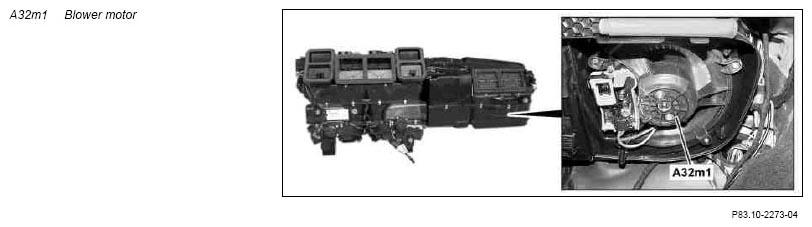

Fig 1: Locating Blower Motor
G07286056Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Blower, location The blower motor (A32m1) is located on the right of the AC housing.
Blower, task The blower motor (A32m1) draws in fresh air or recirculates the interior air depending on the position of the fresh air flap and recirculated air flap. In engine residual heat utilization mode the blower motor (A32m1) recirculates the interior air.
Blower, function   GF83.10-P-2102-02T
