Actuator motors for comfort automatic air conditioning, location/task/function - GF83.40-P-2183TT

MODEL 211.0/2/6 with CODE (581b) Convenience automatic air conditioning

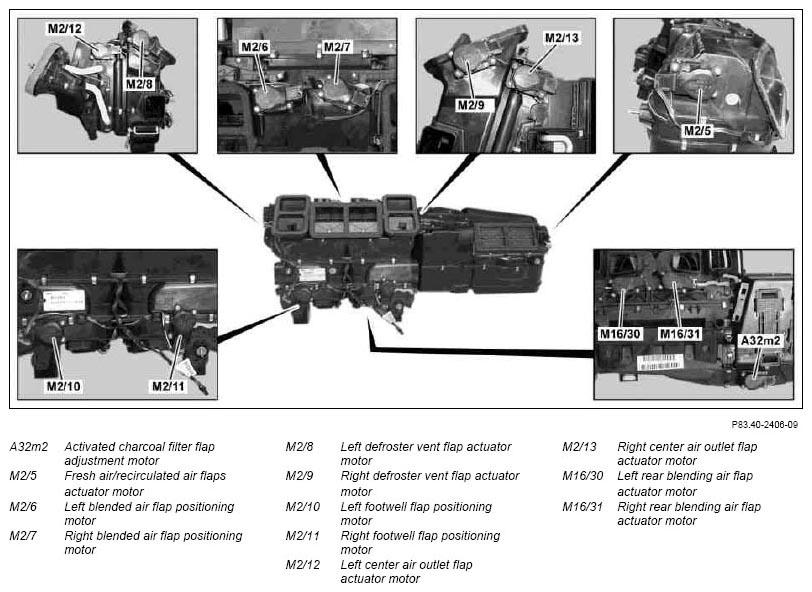

Fig 1: Identifying Comfort Automatic Air Conditioning Actuator Motors Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Comfort automatic air conditioning actuator motors, location	The activated charcoal filter flap adjustment motor (A32m2) and the actuator motors (M2/5, M2/6, M2/7, M2/8, M2/9, M2/10, M2/11, M2/12, M2/13, M16/30 and M16/31) are located on the comfort automatic air conditioning housing.
Comfort automatic air conditioning actuator motors, task		GF83.40-P-2183-01TT
Comfort automatic air conditioning actuator motors, function		GF83.40-P-2183-02TT
