Fuse and relay box, as-built configuration - GF54.15-P-0800TM
MODEL 211.0/2 except CODE () as of Model Year 07 AEJ 06

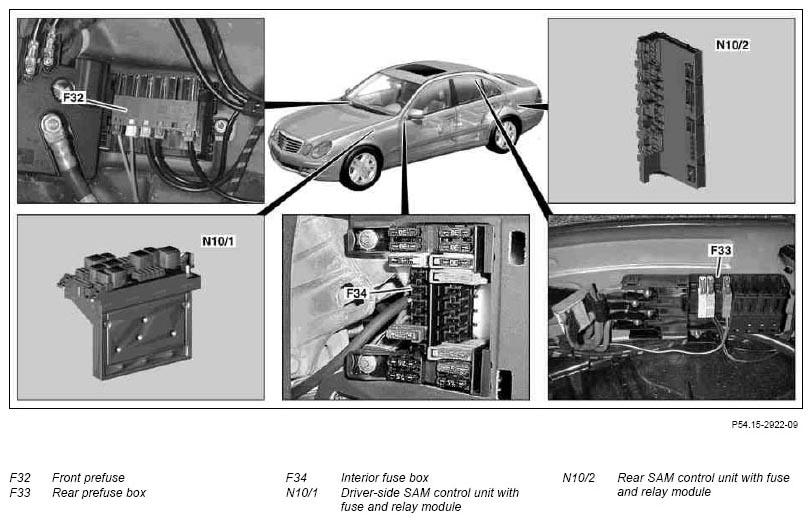

Location on example of model 211.0

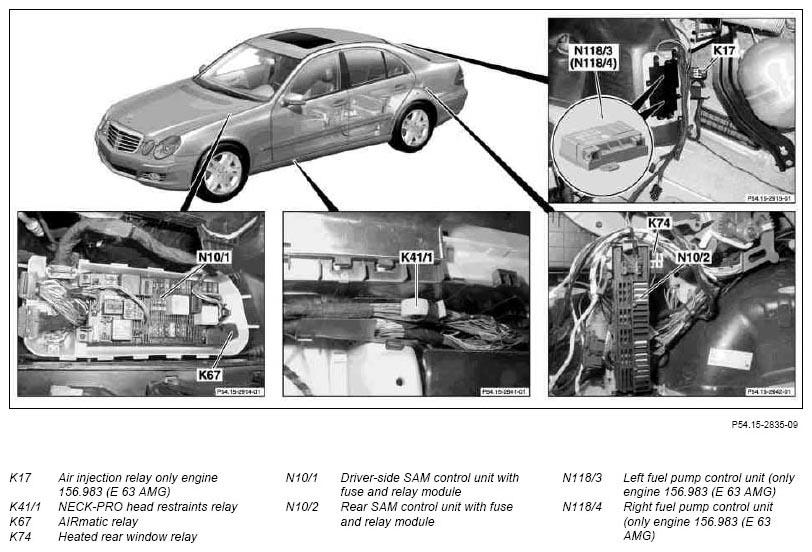

Location on example of model 211.0
| Fuse assignment of fuse and relay box in left engine compartment | GF54.15-P-1256-03TM |
| Fuse assignment of fuse box in interior compartment on driver's side | GF54.15-P-1256-04TM |
| Fuse assignment of fuse and relay box in trunk | GF54.15-P-1256-06TM |
| Fuse assignment of front prefuse box | GF54.15-P-1256-07TM |
| Fuse assignment of rear prefuse box | GF54.15-P-1256-08TM |
| Relay assignment of fuse and relay box in left side of engine compartment | GF54.15-P-1257-03TM |
| Relay assignment of fuse and relay box in trunk | GF54.15-P-1257-04TM |
