Remove/install rear-end door control unit - AR54.21-P-0818T

MODEL 211.2

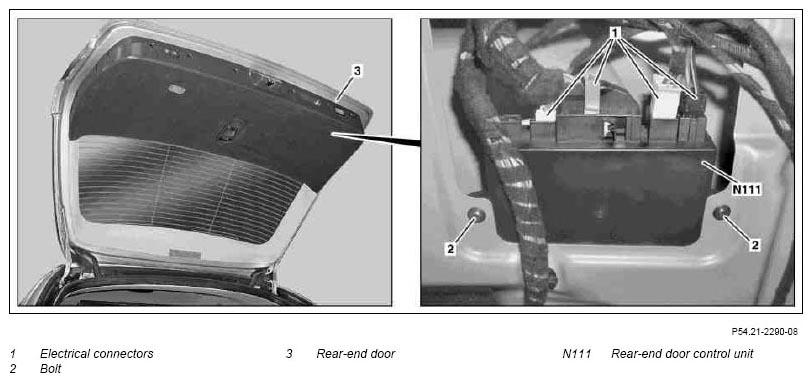

Fig 1: Identifying Rear-End Door Control Unit Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

5.7.06

"Disconnect/connect battery ground line" removed

	Remove/install
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove door lining from rear-end door (3)		AR72.20-P-3520T
2	Disconnect electrical connectors (1) from rear door control unit (N111)	Number of electrical connectors (1) according to equipment.
3	Unscrew bolts (2) and remove the rear-end door control unit (N111) from the rear-end door (3)
4	Install in the reverse order
