Removing, installing rear prefuse box - AR54.15-P-1340T

MODEL 211.2

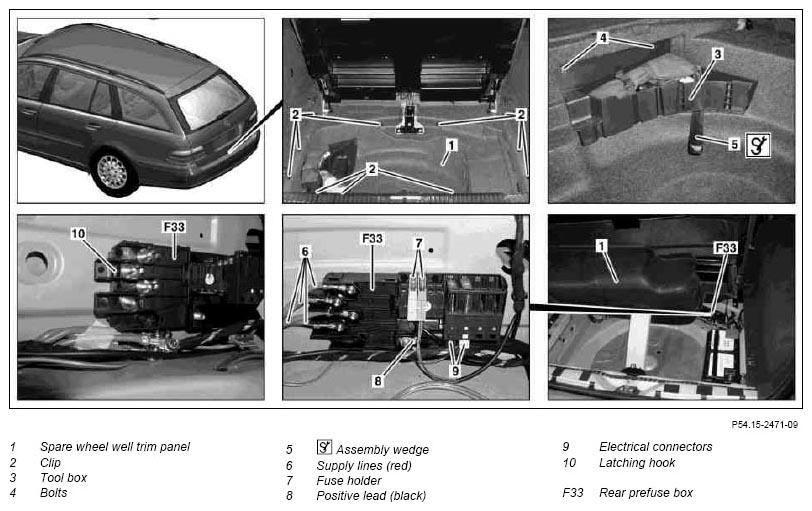

Fig 1: Identifying Rear Pre-Fuse Box Components
G07274684Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/Install
1 Remove trim from rear end center assembly   AR68.30-P-4785TA
2 Disconnect battery ground cable   AR54.10-P-0003TA
3.1 Lift TIREFIT box out of spare wheel well Not on vehicles with:
Code (669), spare tire on steel rim
or
Code (679), spare tire in structural wheel design
or
Code (690) Compact spare tire as emergency wheel

3.2 Remove spare wheel from spare wheel well Only vehicles with:
Code (669), spare tire on steel rim
or
Code (679), spare tire in structural wheel design
or
Code (690) Compact spare tire as emergency wheel

4 Unscrew screws (4) from tool box (3), unclip tool box (3) using mounting wedge (5) and then remove SPECIAL TOOL *110589035900
5 Remove clips (2) and raise spare wheel well trim panel (1) until rear prefuse box (F33) can be accessed IMPORTANT Remove all clips (2) from spare wheel well trim panel (1). Number of clips (2) varies depending on equipment configuration. Support spare wheel well trim panel (1) using a suitable object.
IMPORTANTInstallation:  Install new clips (2).

COMMERCIALLY AVAILABLE TOOLS *WH58.30-Z-1004-19A
6 Mark installation position of individual supply lines (red) (6) IMPORTANT Number of supply lines (red) (6) varies depending on equipment configuration.
7 Slacken nuts securing supply lines (red) (6) to rear prefuse box (F33) and move supply lines (red) (6) to one side IMPORTANT Nuts remain attached to supply lines (red) (6).
IMPORTANTInstallation:  Observe markings showing installation position.

TORQUE SPECIFICATION *BA54.10-P-1008-01C
8 Unclip fuse holders (7) IMPORTANTInstallation:  Pay attention to color coding. Number of fuse holders (7) varies depending on equipment configuration.
9 Unscrew positive lead (black) (8) and move to one side TORQUE SPECIFICATION *BA54.10-P-1008-01C
10 Separate electrical connectors (9) IMPORTANTInstallation:  Electrical connectors (9) are color-coded.
11 Unclip rear prefuse box (F33) from latching hook (10) and remove IMPORTANT Push latching hook (10) to side.
12 Install in the reverse order
BATTERY

Number Designation Model 211
BA54.10-P-1008-01C Nut, line connection to rear prefuse box M6 Nm 7
M8 Nm 21
Fig 2: Identifying Mounting Wedge (110 589 03 59 00)
G07274685Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1004-19A Door panel release lever
