Remove/install paneling on rear center section - AR68.30-P-4785TA

MODEL 211.2

Shown on vehicle with code (943) Automatic extendable main loading floor

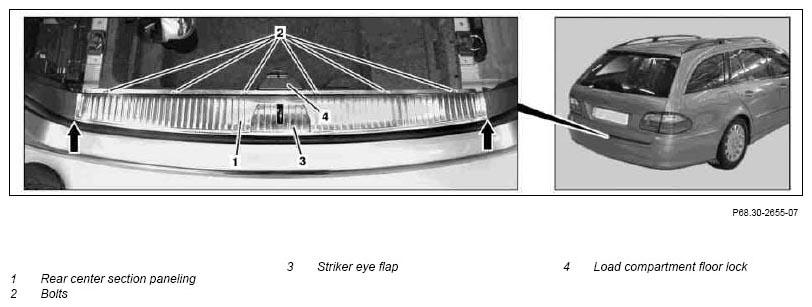

Fig 1: Identifying Rear Center Section Paneling Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove left side paneling in load compartment		AR68.30-P-1180T
2	Open load compartment floor upwards
3	Unscrew screws (2) from rear center section paneling (1).
4.1	Unscrew mounting screws on loading floor lock (4).	On vehicles without code (943) Automatic extendable main loading floor
5	Remove rear center section paneling (1) from retaining arrests toward rear	Installation:  Ensure that rear center section paneling (1) is seated correctly below left and right paneling (arrows).
6.1	Remove locking eye flap (3) from rear center section paneling (1).	Only when replacing rear center section paneling (1) or locking eye flap (3).
7	Install in the reverse order
