Remove/install clutch pedal - AR29.10-P-4598T

MODEL 211 with TRANSMISSION 716.6 except CODE (424) Sequentronic automated manual transmission (SEQ)

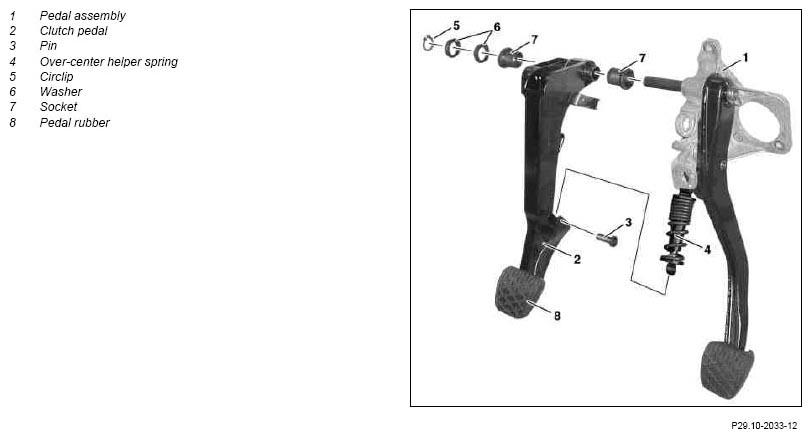

Fig 1: Identifying Clutch Pedal Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove foot controls (1)		AR29.10-P-0300T
2	Press clutch pedal (2) all the way down.
3	Lever out bolt (3) of overcenter spring (4).
4	Swivel overcenter spring (4) of clutch pedal (2) to the side.
5	Remove retaining ring (5)
6	Remove washers (6)
7	Remove clutch pedal (2)
	Checking
8	Check bushing (7) for signs of wear and replace if necessary	Installation:  Apply light coating of grease (7) to inside diameter.
		Long-life grease	*BR00.45-Z-1001-06A
9	Check rubber pad (8) for signs of wear and replace if necessary
10	Install in the reverse order
