Remove/install pedal assembly - AR29.10-P-0300T

MODEL 211 with TRANSMISSION 716.6 except CODE (424) Sequentronic automated manual transmission (SEQ)

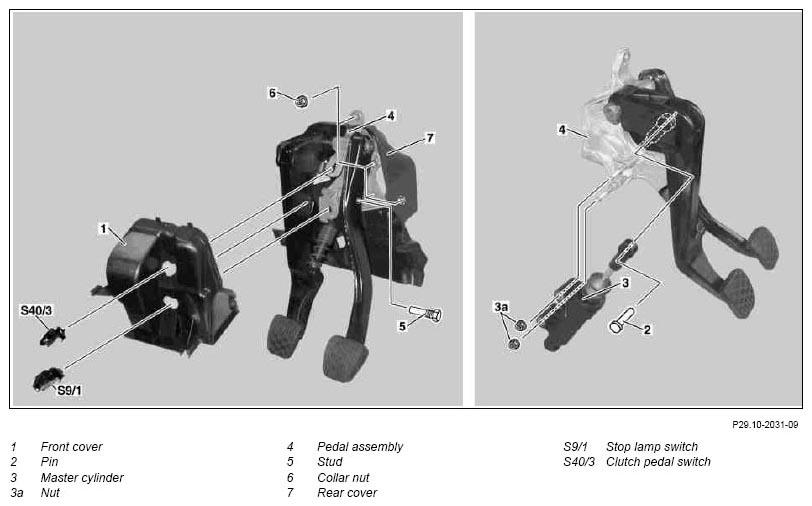

Fig 1: Identifying Pedal Assembly Components (With Transmission 716.6)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Remove left cover below dashboard		AR68.10-P-1500T
2	Remove stop lamp switch (S9/1)		AR42.10-P-0040I
3	Remove clutch pedal switch (S40/3)	Press the locking catch and turn the clutch pedal switch (S40/3) clockwise through 90°.
4	Unclip and remove front cover (1).
5	Lever out bolt (2).	Check bolt for damage and wear, replace if necessary. Installation: apply light coating of grease to pin.
		Long-life grease	*BR00.45-Z-1001-06A
6	Disconnect master cylinder (3) from pedal assembly (4)	Installation:  install new nuts (3a). Do not disconnect lines from master cylinder.
		Nut, master cylinder to pedal bracket	*BA25.20-P-1001-01A
7	Remove stud (5).	Check stud for damage and wear, replace if necessary.
8	Unscrew collar nuts (6).
9	Unclip pedal assembly (4) from rear cover (7) and remove.
10	Install in the reverse order
