Remove/install sealing rail on inside - AR72.10-P-1600T

MODEL 211.0/2/6

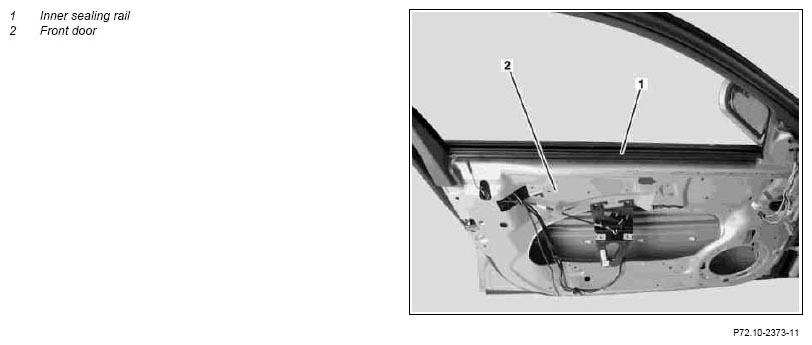

Fig 1: Identifying Inner Sealing Rail

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Completely open window in front door (1)
2	Remove door lining on front door (2)		AR72.10-P-1000T
3	Unclip inner sealing rail (1) from front door (2) with mounting wedge from rear toward front		*110589035900
4	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
