Remove/install door lining on front door - AR72.10-P-1000T
MODEL 211.0/2/6
MODIFICATION NOTES
| 8.1.04 | Disconnect/connect/remove ground lead from battery |
| Remove/Install | |||
| 1 | Lower window in front door | ||

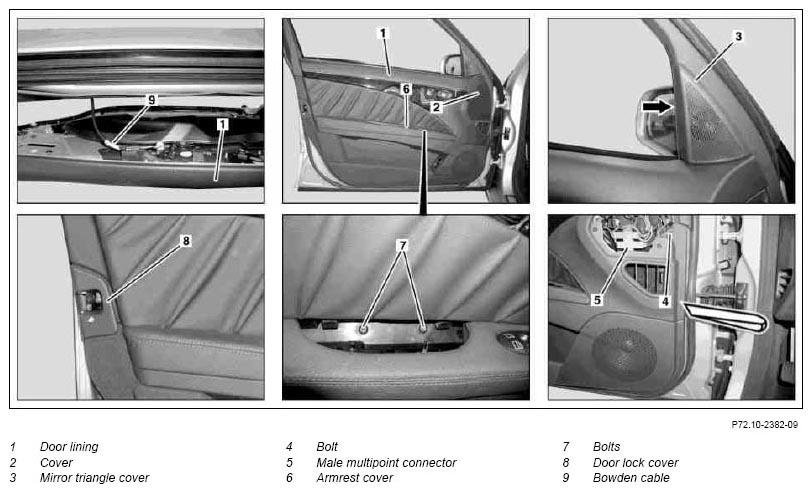

| 2 | Unclip mirror triangle cover (3) (arrow) and disconnect electrical connector from tweeter | ||
| 3 | Remove cover (2) from door lining and remove | ||
| 4 | Unscrew screw (4) and unclip male multipoint connector (5) | ||
| 5 | Unclip armrest cover (6) and unscrew bolts (7) below | ||
| 6 | Remove covering of door lock (8) | ||
| 7 | Pry off door lining (1) from inner door panel with mounting wedge at mounting clips | ||
| *110589035900 | |||
| 8 | Lift door lining (1) upward and simultaneously pull away from inner door panel until Bowden cable (9) is accessible | ||
| 9 | Remove Bowden cable (9) at inner door opener | ||
| 10 | Disconnect electrical connectors between door lining (1) and front door control module | ||
| 11 | Remove door lining (1) | ||
| 12 | Install in the reverse order |
