Remove/install side air nozzle - AR68.10-P-1100T

MODEL 211.0/2/6

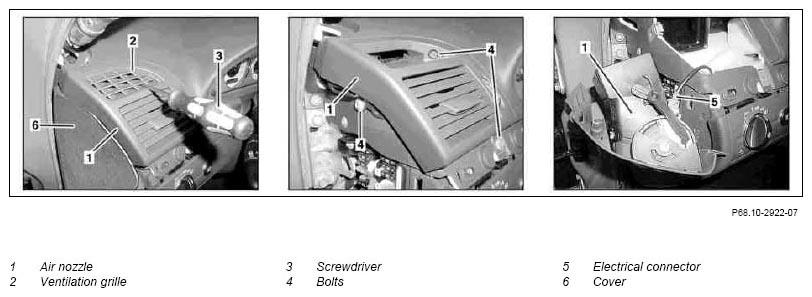

Fig 1: Identifying Side Air Nozzle Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on left door air nozzle

MODIFICATION NOTES

8.1.04

Disconnect/connect/remove ground lead from battery

	Remove/Install
1	Remove door sealing frame in area of cover (6) and unclip cover (6) from instrument panel with mounting wedge		*110589035900
2	Remove trim strip on instrument panel	When removing the left air nozzle (1) only remove the left trim strip, when removing the right air nozzle (1) only remove the right trim strip.	AR68.10-P-1180T
3	Unclip vent grille (2) from the air nozzle (1) using a suitable screwdriver (3)	Carefully unclip ventilation grate (2), otherwise the ventilation grate (2) can be scratched or break.
4	Remove bolts (4)
5	Remove air nozzle (1) from instrument panel until electrical connector (5) is accessible
6	Disconnect electrical connector (5) and remove air nozzle (1)
7	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
