Remove/install trim strip on instrument panel - AR68.10-P-1180T

MODEL 211.0/2/6

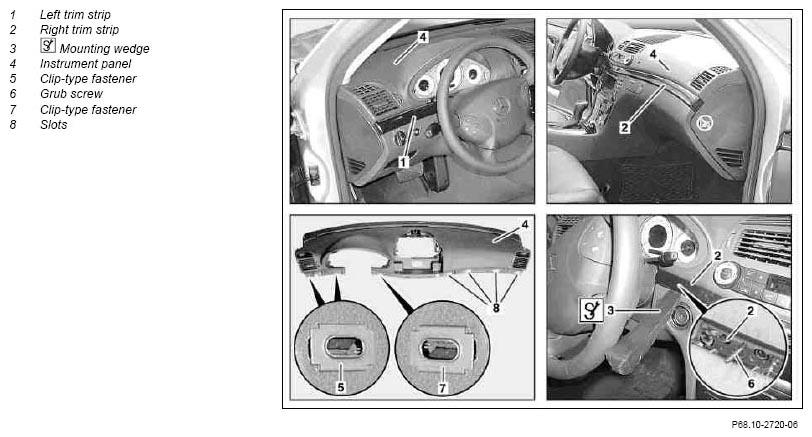

Fig 1: Identifying Instrument Panel Trim Strip Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Unclip left trim strip (1) from clip fasteners (5) in instrument panel (4) with mounting wedge (3).	Installation:  Replace damaged clip-type fasteners (5).	*110589035900
2	Unclip right trim strip (2) at threaded pin (6) out of the clip-type fastener (7) using mounting wedge (3)		*110589035900
3	Slide right trim strip (2) to the right and detach from the instrument panel (4)	The right trim strip (2) is fastened in the oblong holes (8) in the instrument panel (4). Installation:  Replace damaged clip-type fastener (7).
4	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
