Unlock with remote control key, function - GF80.20-P-3006TA
MODEL 211.2

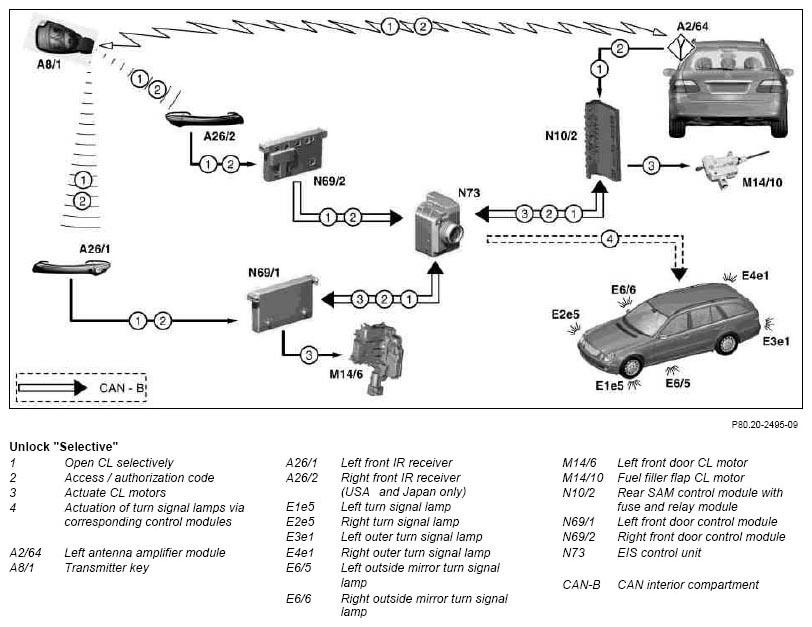

Unlock "Selective"
Transmitter key (A8/1) set to "selective" unlocking
When the button "Unlock vehicle" is actuated once, the transmitter key (A8/1) transmits a signal to the corresponding receiver in the vehicle via radio and infrared signals. They receive the signal and relay it to the EIS control module (N73) via the passenger compartment CAN bus
The electronic ignition/starter switch control module (N73) checks the access authorization. If the access authorization is valid, the EIS control module (N73) transmits the command for selective unlocking to the left front door control module (N69/1) and rear SAM control module with fuse and relay module (N10/2) via the CAN interior compartment This activates locking of the driver's door and fuel filler flap by actuating the left front door CL motor (M14/6) and fuel filler flap CL motor (M14/10).
If another request for unlocking is received, the vehicle is unlocked globally.
Reception of the "unlocking" signal is indicated by the turn signal lamps flashing once
The acknowledgment is output via the left turn signal lamp (E1e5), right (E2e5), outer left (E3e1), outer right (E4e1) and left outside mirror turn signal lamp (E6/5) and right (E6/6).
It is possible to switch from selective unlocking to global unlocking or vice versa by actuating the locking and unlocking buttons on the transmitter key (A8/1) simultaneously.

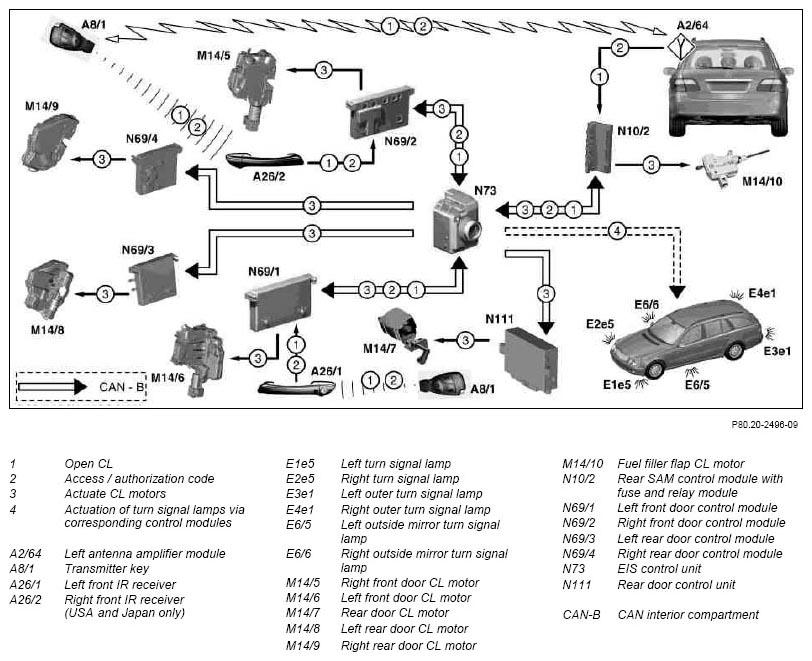

"Global" unlocking
Transmitter key (A8/1) set to "global" unlocking
When the button "Unlock vehicle" is actuated once, the transmitter key (A8/1) sends a signal to the corresponding receiver in the vehicle via radio and infrared signals. If the access authorization is valid, the EIS control module (N73) transmits the command global unlocking to the left front door control module (N69/1), right front (N69/2), left rear (N69/3), right rear (N69/4), the rear SAM control module with fuse and relay module (N10/2) and the rear door control module (N111) via the CAN interior compartment.
They activate closing of the doors, the fuel filler flap and the rear door by actuating the right front door CL motor (M14/5), left (M14/6), rear door (M14/7), left rear door (M14/8), right (M14/9) and fuel filler flap (M14/10).
Reception of the "unlocking" signal is indicated by turn signal lamps flashing once
The acknowledgment is output via the left turn signal lamp (E1e5), right (E2e5), outer left (E3e1), outer right (E4e1) and left outside mirror turn signal lamp (E6/5) and right (E6/6).
When globally and selectively unlocking with the transmitter key (A8/1), the interior central locking and ATA function display switch and the open/close trunk lid switch, driver (only with code (890) Automatic rear door) are enabled.
