Remove/install sealing frame on tailgate - AR72.20-P-3540T

MODEL 211.2

Illustrated with removed bumper

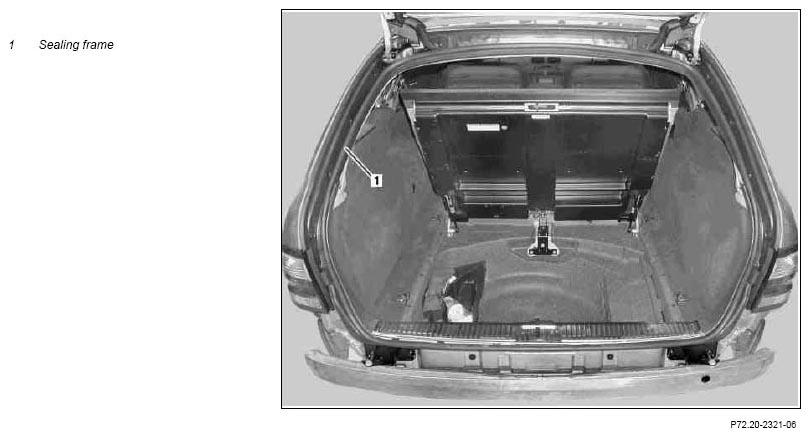

Fig 1: Identifying Tailgate Sealing Frame

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
1	Remove covers from tailgate sealing frame	Remove all covers.	AR88.80-P-0003T
2	Remove sealing frame (1) from body bead
	Install
3	Install sealing frame (1) on body bead	Do not use lubricant, otherwise leakage is possible.
4	Check sealing frame (1) for proper seat, if necessary lift sealing frame lip (1) over paneling on D-pillar and headliner with clean long wedge		*115589035900

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
