Remove/install covers on rear-end door sealing frame - AR88.80-P-0003T

MODEL 211.2

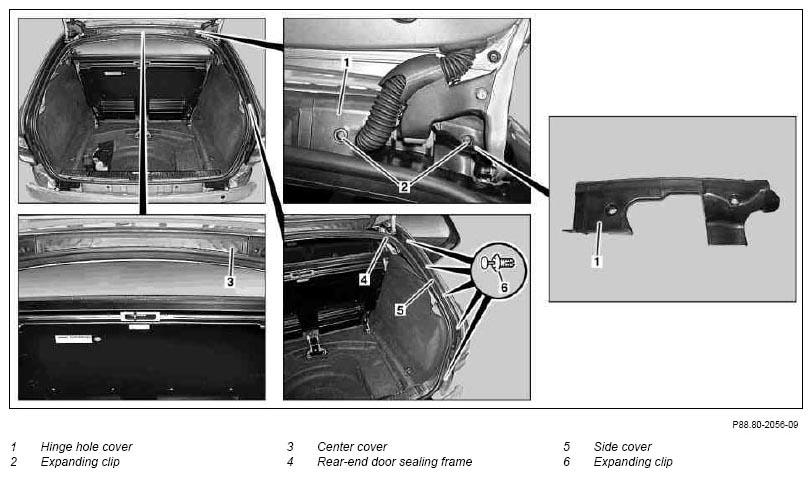

Fig 1: Locating Rear-End Door Sealing Frame Covers

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Open rear-end door	See Operating Instructions
2	Remove expanding clips (2)	Installation:  Replace expanding clips (2)
3	Remove left or right hinge hole cover (1) toward outside between vehicle roof and rear spoiler
4	Detach center cover (3) from roof frame with mounting wedge and remove	The center cover (3) must not be removed for removing the rear-end door sealing frame (4)
		Installation:  Replace center cover (3) Clean assembly point on roof frame and degrease.	*110589035900
5	Remove rear-end door sealing frame (4) from D-pillar in area of side cover (5)	Installation:  Do not use lubricant and ensure that rear-end door sealing frame (4) is seated correctly to prevent leakage
6	Remove expanding clips (6)	Installation:  Replace expanding clips (6)
7	Remove side cover (5)
8	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
