Remove/install rear-end door closing switch - AR72.20-P-3605T

MODEL 211.2 with CODE (890) Automatic rear-end door

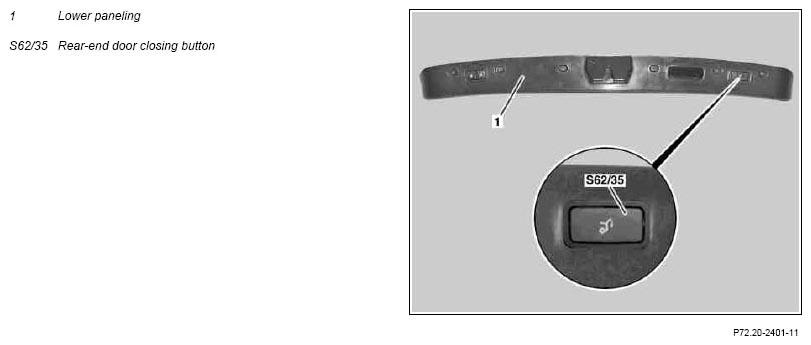

Fig 1: Locating Rear-End Door Closing Switch
G07274841Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
1 Remove lining on rear-end door IMPORTANT Remove only bottom paneling (1). AR72.20-P-3520T
2 Unclip rear-end door closing button (S62/35) from bottom paneling (1) and remove
3 Install in the reverse order
