Remove/install rear door closing control module - AR72.20-P-7551T
MODEL 211.2 with CODE (890) Automatic liftgate
MODIFICATION NOTES
| 6.6.06 | "Disconnect/connect battery ground line" removed |
| Remove/install | |||
|---|---|---|---|
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove side paneling on left side of rear compartment | AR68.30-P-4780T | |

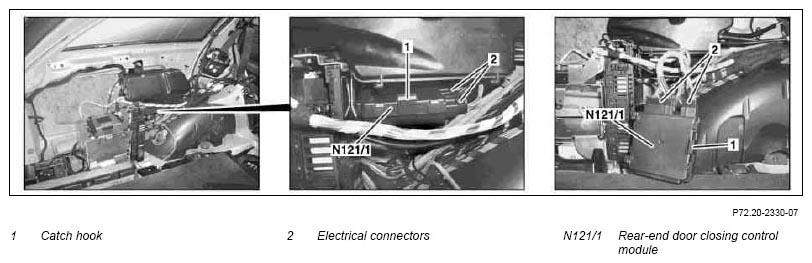

| 2 | Press catch hook (1) on rear door closing control module (N121/1) and remove rear door closing control module (N121/1) until electrical connectors (2) are accessible | ||
| 3 | Disconnect electrical connectors (2) and remove rear door closing control module (N121/1) | ||
| 4 | Install in the reverse order | ||
| 5 | Synchronize rear door closing control module (N121/1) | Only when replacing rear-end door closing control unit (N121/1), on vehicles with production date up to 31.05.06. | AR72.20-P-7551-01T |
| Only when replacing rear-end door closing control unit (N121/1) on vehicles with production date as of 01.06.06. | AR72.20-P-7551-01TA |
