Remove/install inside door opener at front door - AR72.10-P-2420T

MODEL 211.0/2/6

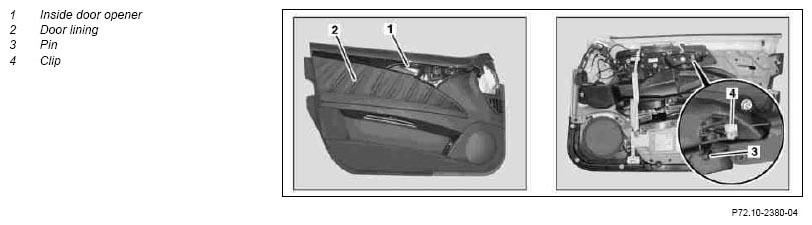

Fig 1: Identifying Front Door Inside Opener Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove door lining (2)	On vehicles except code (Z04) Light armoring	AR72.10-P-1000T
		On model 211.065/070 with code (Z04) Light armoring	AR72.10-P-1000TG
2	Unclip clip (4)
3	Unlock bolt (3) and pull out
4	Remove inside door opener (1) from door lining (2)
5	Install in the reverse order
