Standing lamps/parking lamps actuation, function - GF82.10-P-3060TM

MODEL 211.0/2 as of 1.6.06 except CODE (494) USA version except CODE (498) Japan version

MODEL 211.0/2 as of 1.7.06 with CODE (494) USA version with CODE (498) Japan version

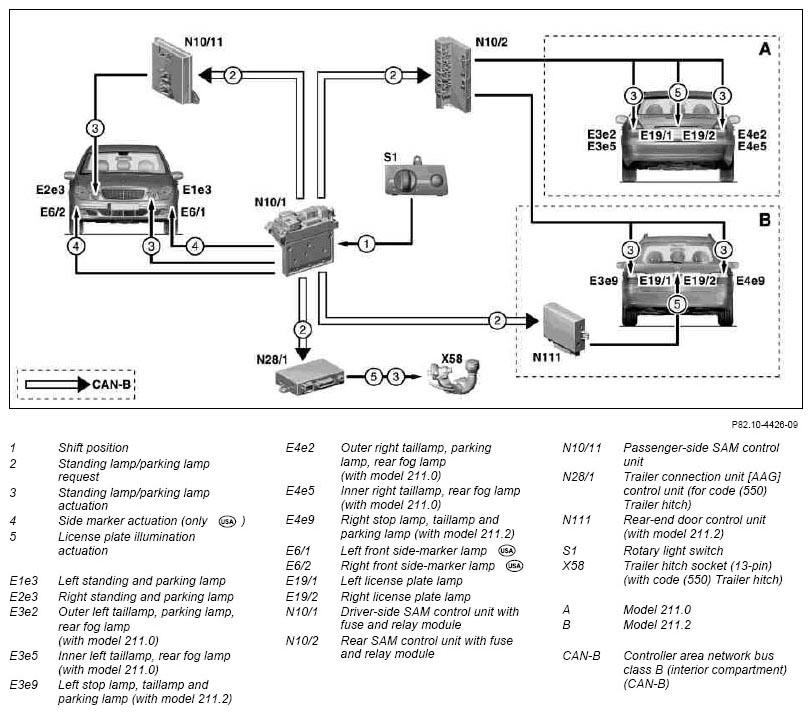

Fig 1: Networking Of Standing Lamps/Parking Lamps Actuation Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Standing lamp actuation

Function

The driver-side SAM control unit directly reads in the rotary light switch position and forwards the request over CAN-B to the following control units:

Front passenger-side SAM control unit
Rear SAM control unit
Rear-end door control unit
Trailer connection unit [AAG] control unit
Instrument cluster

Actuations

The driver-side SAM control unit actuates the left standing and parking lamp and the side-marker lamps.
The front passenger-side SAM control unit actuates the right standing and parking lamp.
On vehicles with bi-xenon headlamps, the standing lamps are designed as a light emitting diode (LED) light source.
With model 211.0, the rear SAM control unit actuates the taillamps and the license plate lamps.
With model 211.2, the rear SAM control unit actuates the taillamps only, and the rear-end door control unit actuates the license plate lamps.
On vehicles with code (550) Trailer hitch, the trailer connection unit [AAG] control unit actuates the trailer's lamps over the AHV socket.

If the transmitter key (A8/1) is removed and the driver door opened, a lights-on warning is issued by the instrument cluster.

Lights on warning

Function

The logic for actuation of the warning buzzer (A1h1) is stored in the instrument cluster. The instrument cluster receives the signal for an active standing lamp function over CAN-B from the driver-side SAM control unit and links this information with the signals from the left front door contact switch (S17/3) and the headlamp switch-off delay.

The warning buzzer for automatic headlamps actuation is actuated when the driver door is opened and the standing lamps function is active, circuit 15R Off (transmitter key inserted) and the headlamp switch-off delay inactive.

Parking lamp actuation

Function requirements

C. 15R OFF

Function

The driver-side SAM control unit reads in the rotary light switch position and places the corresponding request on CAN-B.

Left parking lamp

The left standing and parking lamp is actuated by the driver-side SAM control unit.

The rear SAM control unit receives the "Left parking lamp On" request over CAN-B and switches on the left taillamp (with model 211.0) or the left stop lamp, taillamp and parking lamp (with model 211.2).

Right parking lamp

The front passenger-side SAM control unit and the rear SAM control unit receive the request over CAN-B.

The right standing and parking lamp is switched on by the front passenger-side SAM control unit.

The rear SAM control unit switches on the right taillamps (with model 211.0) or the right stop lamp, taillamp and parking lamp (with model 211.2).

Vehicles with code (550) Trailer hitch

The trailer connection unit [AAG] control unit receives the request over CAN-B and switches the corresponding trailer light on over the AHV socket.

Driver-side SAM control unit with fuse and relay module, location/task/design	N10/1	GF54.21-P-4109T
Rear SAM control unit with fuse and relay module, location/task	N10/2
	Model 211.0	GF54.21-P-4130T
	Model 211.2	GF54.21-P-4130TA
Front passenger-side SAM control unit with fuse and relay module, location/task/design	N10/11	GF54.21-P-4111T
Trailer recognition control unit, location/task	N28/1 With code (550) Trailer hitch	GF82.10-P-2106T
Rear-end door control unit, location/task	N111 Model 211.2	GF68.80-P-4002TA
Rotary light switch module, location/task/design	S1	GF82.10-P-4104T
