Windshield washer system - inspect fluid level, adjust to correct level - AP82.35-P-8210N

MODEL 171, 211, 215, 220, 230, 240

Left picture: model 171

Right picture: model 211

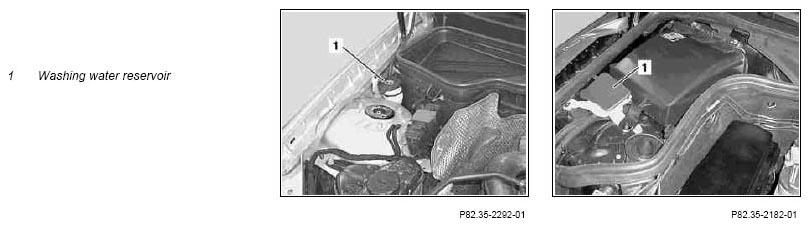

Fig 1: Identifying Washing Water Reservoir (Model 171 And 211)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

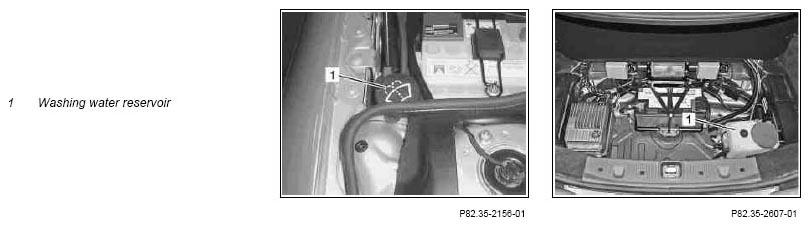

Fig 2: Identifying Washing Water Reservoir (Model 230)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Left picture: Model 230 without code (P99) Special model "AMG Black Series"

Right picture: Model 230 with code (P99) Special model "AMG Black Series"

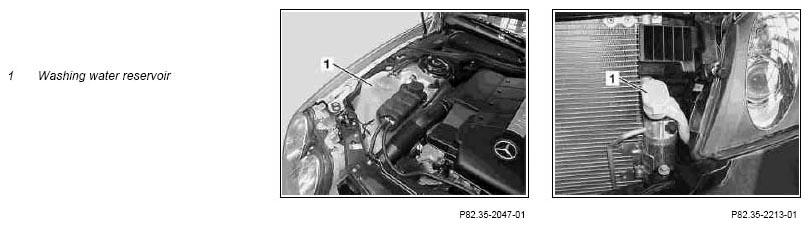

Fig 3: Identifying Washing Water Reservoir (Model 220215 And 230)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Left picture: model 220215

Right picture: model 240

	Remove/install
	Risk of fire and explosion  caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning  caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury  or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin.	Wear protective clothing and tight fitting safety glasses. No fire, open light or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of children's reach only.	AS82.35-Z-0001-01A
1.1	Open engine hood and raise to vertical position	Except model 230 with code (P99) Special model "AMG Black Series"
	Opening engine hood, moving to upright position and closing	Model 211	AR88.40-P-1000T
		Model 215, 220	AR88.40-P-1000M
		Model 230	AR88.40-P-1000R
		Model 240 Model 171	AR88.40-P-1000H
1.2	Open trunk lid and lift up trunk floor cover	Model 230 with code (P99) Special model "AMG Black Series"
2	Remove cover from washer fluid reservoir (1)
3	Fill washer fluid reservoir (1) with windshield washer fluid	Observe mixing ratio as per the table on the packaging of the windshield washer fluid and antifreeze. Models 171, 215, 220, 230, 240
		Windshield washer fluid Model 211	*BF82.35-P-1001-01D
		Windshield washer fluid	*BF82.35-P-1001-01C
	Windshield washer concentrate	Sheet 371.0	BB00.40-P-0371-00A
4	Install in the reverse order
