Open engine hood, move to upright position, close - AR88.40-P-1000T
MODEL 211
| Opening | |||
| Risk of injury. Fingers may get jammed or crushed when removing, installing or adjusting hoods, doors, gates and sliding roofs. | Keep all body parts clear of moving components. | AS00.00-Z-0011-01A | |

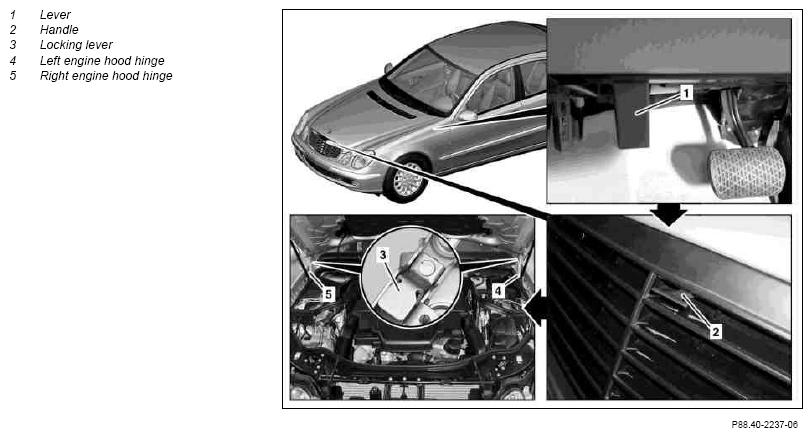

| 1 | Pull release lever (1) in driver's footwell to release engine hood | ||
| 2 | Pull handle (2) out of radiator paneling to stop and move engine hood to normal position. | ||
| Moving to upright position | |||
| 3 | Press locking lever (3) on left engine hood hinge (4) and press engine hood slightly upward | ||
| 4 | Press locking lever (3) on right engine hood hinge (5) and position engine hood vertically. | ||
| Closing | |||
| 5 | Lift engine hood slightly, press locking lever (3) on left hinge lever (4) and close engine hood | ||
| 6 | Check whether engine hood is locked properly |
