Two-way radio system, function - GF82.71-P-1001T

MODELS 211.0/2 with CODE (970) police emergency vehicles

15.03.07

The document has been updated to this date and will no longer be subject to revision.

The task of the two-way radio system is to provide the communication of the emergency vehicle personnel with the emergency headquarters and other crews.

The two-way radio system is started up with the two-way radio main switch (N72s14).

There are three different two-way radio systems:

Individual system with separate operating unit
Dual system
Compact system

Individual system with separate operating unit

Fig 1: Individual System With Separate Operating Unit Radio System Circuit

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Dual system

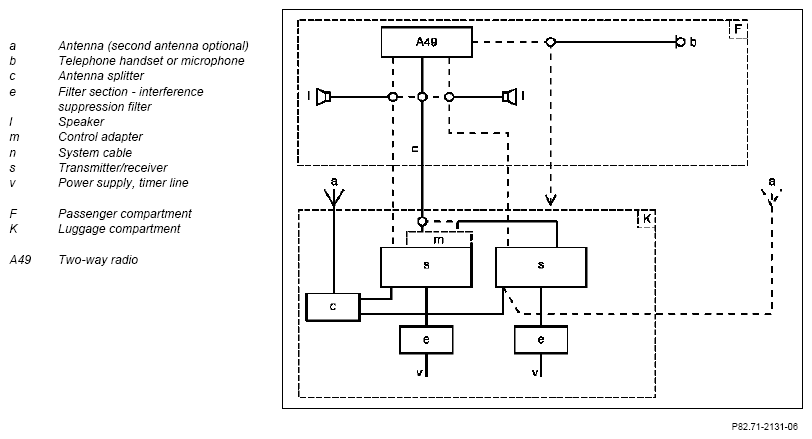

Fig 2: Dual System Radio System Circuit

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Compact system

Fig 3: Compact System Radio System Circuit

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Special vehicle multifunction control module (SVMCM [MSS]), location/task/design/function	GF82.25-P-4112T
Operating unit for special signal system, location/task/design/function	GF82.25-P-2111T
Two-way radio main switch, location/task	GF82.71-P-2110T
