Two-way radio main switch, location/task - GF82.71-P-2110T

MODELS 211.0/2 with CODE (970) police emergency vehicles

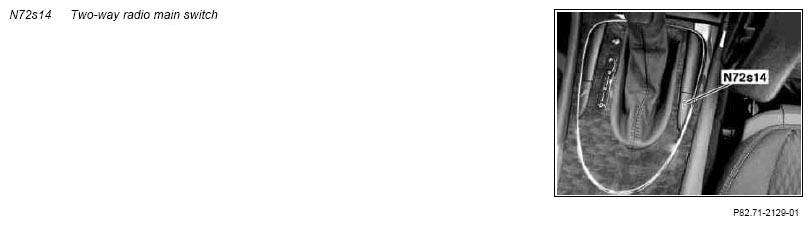

Fig 1: Locating Two-Way Radio Main Switch
G07285175Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Two-way radio main switch, location In the lower control panel control unit (N72) (center console), to the right next to the gearshift/selector lever.
Two-way radio main switch, task Switching the two-way radio system on and off. The integral indicator lamp indicates the operation.
