Remove/install TV antenna amplifier - AR82.62-P-8302T
MODEL 211.2 with CODE (860) TV tuner
MODIFICATION NOTES
| 15.1.04 | Disconnect/connect/remove ground lead from battery |
| Remove/Install | |||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove liner on tailgate | AR72.20-P-3520T | |

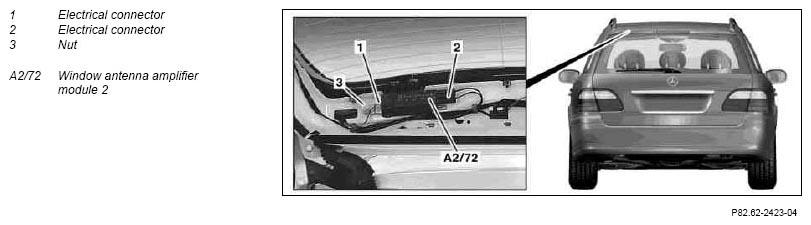

| 2 | Disconnect electrical connectors (1, 2) from window antenna amplifier module 2 (A2/72) | ||
| 3 | Unscrew nut (3) and remove window antenna amplifier module 2 (A2/72) | ||
| 4 | Install in the reverse order |
