Entertainment, Navigation & Telephone -- Basic Knowledge -- E350 (211.256)
>>
Basic Knowledge
>>
Telecommunications control module, location - GF82.70-P-3114-01T
Telecommunications control module, location - GF82.70-P-3114-01T

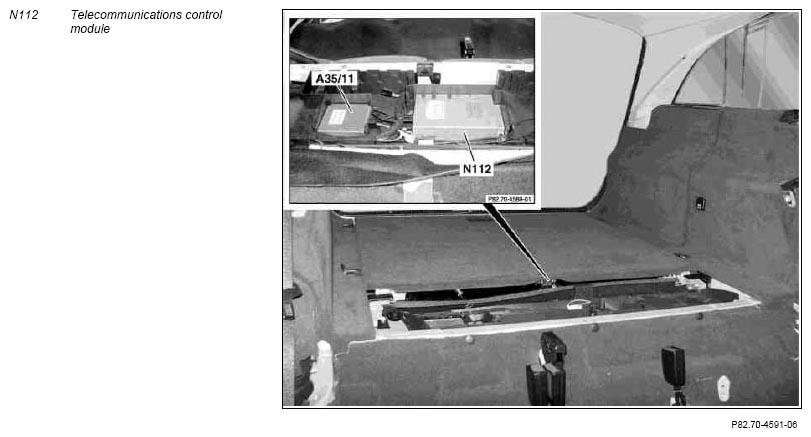

Fig 1: Locating Telecommunications Control Module
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
