Retrofit rear entertainment with one screen - AZ82.60-P-0018TA

MODEL 211.0##/2## 1# except CODE (861) TV rear screen

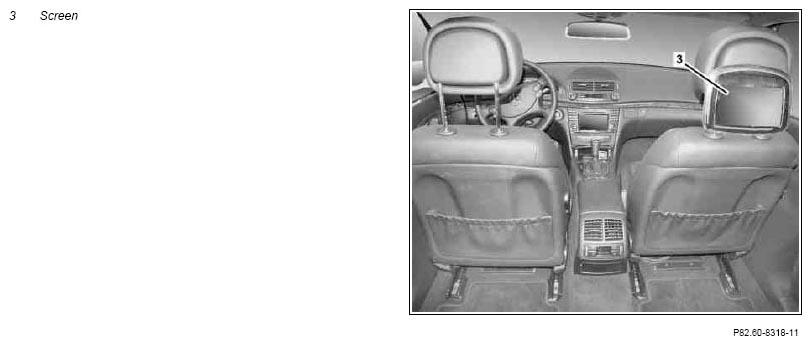

Fig 1: View Of Rear Entertainment Screen

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
		The following operation steps are shown on the right side of the vehicle and can be accomplished analogously on the left side of the vehicle. Clarify beforehand, with the customer, the side of the vehicle on which the screen (3) is to be installed.
1	Detach right front seat		AR91.10-P-1000T
2.1	Detach right head restraint drive	On vehicles with  code (242) Electrically adjustable front passenger seat with memory and with  code (275) Memory package (driver seat, steering column, mirrors) Do not completely remove head restraint or head restraint drive, simply loosen them.
		Up to  30.6.04	AR91.29-P-1432T
		As of  1.7.04	AR91.29-P-1432TA
2.2	Move right front seat head restraint all the way to the top	On vehicles without  code (242) Electrically adjustable front passenger seat with memory and without  code (275) Memory package (driver seat, steering column, mirrors)
3	Detach front dynamic multicontour seat control unit	For vehicles with  code (433) Left dynamic seat, incl. multicontour seat and with code (434) Right dynamic seat, incl. multicontour seat In doing so, do not disconnect pneumatic lines.	AR91.25-P-1800T
	Install
4	Retrofit bracket of screen (3)		AZ82.60-P-0015-04TA
			*BA82.60-P-1001-01A
5	Retrofit rear entertainment wiring harness	Make sure that the wiring harnesses are not damaged by chafing, pinching or crushing, as otherwise the corresponding wiring harness may have to be replaced.
			AZ82.60-P-0015-02TAA
6	Retrofit rear entertainment control unit		AZ82.60-P-0015-01TA
7	Retrofit screen (3)		AZ82.60-P-0015-03TA
8	Install remaining parts
9	Program rear entertainment regional code		AZ82.60-P-0015-06GZ
10	Connect Star Diagnosis
11	Code head restraint height through Diagnosis Assistance System	For vehicles with  code (242) Electrically adjustable front passenger seat with memory or with  code (275) Memory package (driver seat, steering column, mirrors) The head restraint height must be coded to prevent a collision of the head restraint with the screen (3).
12	Disconnect Star Diagnosis
13	Perform function test	See rear entertainment operating instructions.
14	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach note "Rear entertainment with one screen retrofitted as per	AZ82.60-P-0018TA " under field organization texts to design group 82.

REAR ENTERTAINMENT UNIT

Number	Designation		Model 164, 166, 204, 211, 212, 218, 219, 221, 251
BA82.60-P-1001-01A	Screw/bolt to rear entertainment unit bracket	Nm	19

PARTS ORDERING NOTES

Part no.	Designation	Quantity
see Odus	Parts kit for rear entertainment with one screen	1
