Retrofit iPod interface - AZ82.60-P-0014TT

MODEL 211.2## 1# with CODE (526) COMAND (without navigation) except vehicles with FSE11, except vehicles with FSE12

MODEL 211.2## 1# with CODE (527) COMAND APS (with navigation) except vehicles with FSE11, except vehicles with FSE12

MODEL 211.2## 1# with CODE (528) HIGH Class USA except vehicles with FSE11, except vehicles with FSE12

MODEL 211.2## 1# with CODE (530) COMAND APS USA (with navigation system) except vehicles with FSE11, except vehicles with FSE12

Shown on model 211 up to model refinement 06/2006

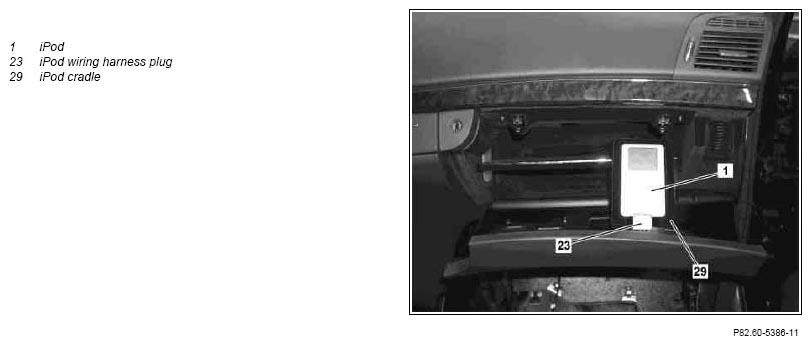

Fig 1: Identifying iPod, iPod Wiring Harness Plug And iPod Cradle

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove left and right side paneling in trunk		AR68.30-P-1180T
2	Remove covering under load compartment inner paneling at left side
3	Detach side trim panel in left and right rear far enough so that iPod wiring harness can be routed.		AR68.30-P-4780T
4	Remove front section of load compartment floor		AR68.20-P-4811T
5	Remove SAM control unit with fuse and relay box from trunk and place to one side with electrical lines attached.	Vehicles without  code (809) Model year 2009 or up to  production date 1.6.08	AR54.21-P-1258TA
		Vehicles with  code (809) Model year 2009 or as of  production date 2.6.08	AR54.21-P-1258TY
6	Release trim at right B-pillar in lower area until the cable duct is accessible		AR68.30-P-4700T
7	Remove right front floor covering		AR68.20-P-2070T
8	Remove COMAND operating, display and controller unit	Vehicles with  code (526) COMAND (without navigation) or with  code (527) COMAND APS (with navigation system) Vehicles with  code (528) HIGH Class USA or with  code (530) COMAND APS USA (with navigation)	AR82.85-P-1000T
	Install
9	Retrofit iPod interface wiring harness		AZ82.60-P-0001-01TA
	Notes on avoiding damage to fiber optic cables during repair work	Media Oriented System Transport (MOST)	AH82.60-P-0001-05AK
10	Retrofit iPod wiring harness	In both variants the glove compartment remains installed. Vehicles with  code (580) Air conditioning system or with USA Tempmatic or  vehicles with  code (581) Comfort automatic air conditioning as of 09.2004 Rechargeable drill/screwdriver gotis://G_58.0_01.1	AZ82.60-P-0001-02T
		Vehicles with  code (581) Comfort automatic air conditioning up to 08.2004 Rechargeable drill/screwdriver gotis://G_58.0_01.1	AZ82.60-P-0001-02TTT
11	Retrofit iPod interface		AZ82.60-P-0001-03T
12	Glue iPod cradle (29) into glove compartment using universal adhesive	Can be stuck to clipboard or base of glove compartment.
		Universal adhesive	*BR00.45-Z-1003-02A
13	Connect iPod (1) to iPod wiring harness plug (23) in glove compartment
14	Insert iPod (1) into iPod cradle (29)
15	Install remaining parts onto vehicle
16	Carry out variant coding with the Diagnosis Assistance System	In vehicles without  one of the codes listed below: Code (380) Complete preinstallation for MB telephone "cell phone" Code (382) MB phone "cell phone" in armrest Code (386) Preinstallation for telephone "cell phone", UPCI [UHI] system Code (388) portable cellular telephone, UPCI system Code (389) Mobile phone preinstallation with universal interface, USA/Canada	AZ54.65-P-0001-08Q
17	Carry out function check	Check iPod functions as per iPod operating instructions in vehicle.
