Retrofit digital TV tuner - AZ82.60-P-0007TA
MODEL 211.2 with CODE (860) TV tuner
| Remove | |||
| 1 | Disconnect battery ground cable | ||
| AR54.10-P-0003TA | |||
| 2 | Connect no load current retention unit | *WH58.30-Z-1012-09A | |
| 3 | Remove luggage compartment trim on left | ||
| 4 | Remove insulating foil on load compartment paneling | ||

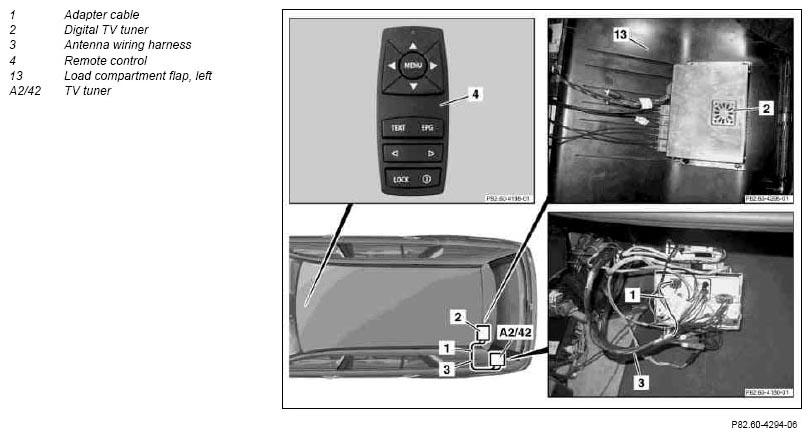

| 5 | Remove TV tuner | ||
| Install | |||
| 6 | Retrofit digital TV tuner control unit | AZ82.60-P-0007-01TA | |
| 7 | Retrofit TV tuner wiring harness | AN82.60-P-0001-03TA | |
| 8 | Carry out start-up and function test | AZ82.61-P-0001-04MM | |
| 9 | Install remaining parts onto vehicle |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| B6 782 64 44 | Digital TV tuner parts kit | 1 |
| B6 782 64 54 | Antenna housing kit | 1 |
