Retrofit digital TV tuner control unit - AZ82.60-P-0007-01TA

Tighten fastening clamps (arrows) as shown to digital TV tuner (2).

Fig 1: Locating Fastening Clamps Of Digital TV Tuner
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

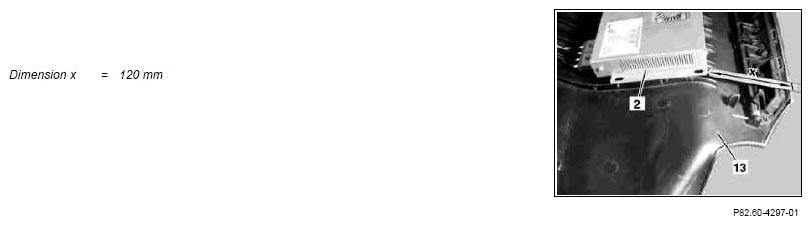

Connect wiring harness to digital TV tuner (2) and mount the TV tuner as shown onto the stiffening rib of the storage compartment flap (13) and press together.

Fig 2: Mounting Digital TV Tuner On Storage Compartment Flap
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Place insulating foil (12) onto storage compartment flap and cut out digital TV tuner (2).
Bond insulating foil firmly back onto flap.

Fig 3: Identifying Insulating Foil And Digital TV Tuner
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
