Retrofit D-net cell phone - AZ82.70-P-0001TA
MODEL 211.2 up to 1.6.09 except CODE (273) D-net cell phone preinstallation for Mercedes-Benz hands-free system FSE11 with CAN interface

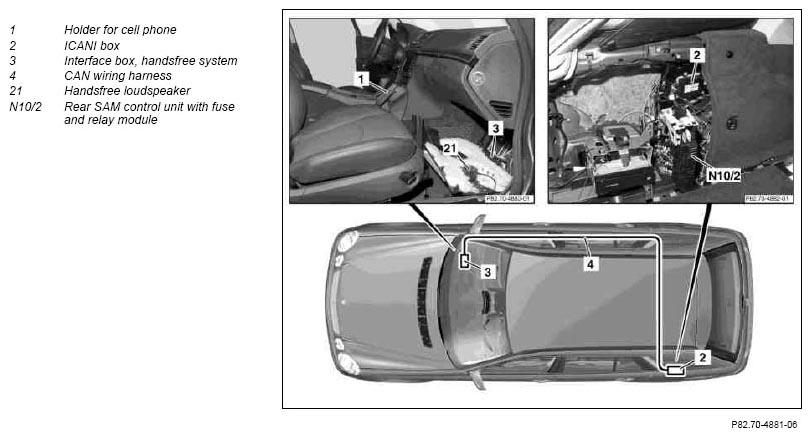

Shown in version with radio
| Remove | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| 1 | Disconnect ground line of battery | ||
| AR54.10-P-0003TA | |||
| Notes on battery | All models | AH54.10-P-0001-01A | |
| 2 | Removing inside trim panel on side of cargo area | ||
| AR68.30-P-1180T | |||
| 3 | Remove front section of load compartment floor | ||
| AR68.20-P-4811T | |||
| 4 | Remove rear seat cushion | ||
| AR91.12-P-1020TB | |||
| 5 | Remove paneling on B-pillar | ||
| AR68.30-P-4700T | |||
| 6 | Open cable duct of frame floor system on left and right | ||
| 7 | Remove cover below dashboard (right) | ||
| AR68.10-P-1520T | |||
| 8 | Remove paneling on A-pillar. | ||
| AR68.30-P-4050T | |||
| AR68.30-P-4050TA | |||
| 9 | Remove rear bumper | ||
| AR88.20-P-2200TA | |||
| Install | |||
| 10 | Retrofit antenna | in vehicles without code (354) Antenna for telephone (D-net and GSM-1800 network) |
AN82.62-P-0001-02TTA |
| Glue cartridge (150 ml) for glued windows | *BR00.45-Z-1016-02A | ||
| 11 | Retrofit the telephone console with PSC adapter | ||
| 12 | Retrofit hands-free system wiring harness | AZ82.70-P-0005-02TA | |
| 13 | Retrofit control unit and interface | AZ82.70-P-0008-01TA | |
| 14 | Enable using Star diagnosis | Control units
|
|
| 15 | Carry out start-up and function test | Check telephone for proper functioning according to operating instructions. | AZ82.61-P-0001-04B |
| 16 | Install remaining parts |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1016-02A | Glue cartridge (150 ml) for glued windows | - |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| B6 787 57 08 | FSE 11 parts kit | 1 |
| B6 788 51 53 | ICANI box parts kit | 1 |
| B6 788 51 50 | Accessories connection kit | 1 |
| B6 787 57 09 | Adapter wiring harness | 1 |
| 004 545 29 05 | Relays | 1 |
| Commercially available | Fuse 7.5A | as required |
| B6 787 58 22 | Cell phone cradle for Nokia 6210, 6310, 6310i | 1 |
| B6 787 58 26 | Cell phone cradle for Siemens S45, S45i, C45, M50, MT50, ME45 | 1 |
| B6 787 58 24 | Cell phone cradle for Motorola V60i (GSM) | 1 |
| B6 787 58 27 | Cell phone cradle for Siemens S55, C55, M55 | 1 |
| Accessories | Telephone console with PSC adapter (actual unit ordered depends on customer request, vehicle model and equipment) | as required |
