Standing light actuation, function - GF82.10-P-3000T

MODEL 211.0/2 up to 31.5.06 except CODE (494) USA version except CODE (498) Japan version

MODEL 211.0/2 up to 30.6.06 with CODE (494) USA version with CODE (498) Japan version

Networking of components, shown on model 211.0

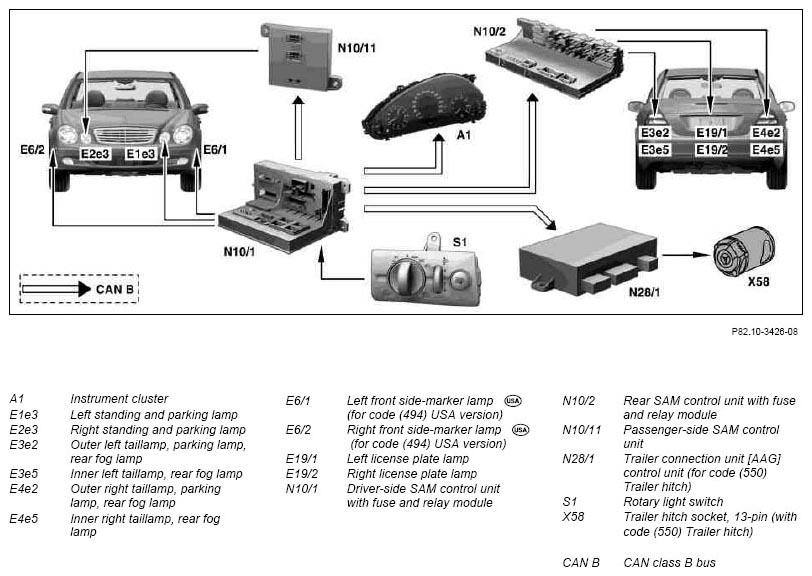

Fig 1: Networking Of Standing Light Components, Shown On Model 211.0

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function sequence

If the rotary light switch (S1) is turned to the standing lamp position, the driver-side SAM control unit with fuse and relay module (N10/1) signals "standing lamp On" via CAN class B to the following control units:

right SAM control unit (N10/11)
Rear SAM control unit with fuse and relay module (N10/2)
Instrument cluster (A1)

Front standing lamp actuation

The driver-side SAM control unit with fuse and relay module (N10/1) actuates the following lamps:

Left standing and parking lamp (E1e3) in the left front lamp unit (E1)
Left front side-marker lamp (E6/1)
Right front side-marker lamp (E6/2)

The passenger-side SAM control unit (N10/11) actuates the right standing and parking lamp (E2e3) in the front lamp unit (E2) on the right.

Rear standing lamp actuation (model 211.0)

The rear SAM control unit with fuse and relay module (N10/2) actuates the following lamps:

Outer left taillamp, parking lamp, rear fog lamp (E3e2)
Inner left taillamp, rear fog lamp (E3e5)
Left license plate lamp (E19/1)
Outer right taillamp, parking lamp, rear fog lamp (E4e2)
Inner right taillamp, rear fog lamp (E4e5)
Right license plate lamp (E19/2)

Rear standing lamp actuation (model 211.2)

The rear SAM control unit with fuse and relay module (N10/2) actuates the following lamps:

Left stop lamp, taillamp and parking lamp (E3e9)
Right stop lamp, taillamp and parking lamp (E4e9)

The rear door control unit (N111) actuates the following lamps:

Left license plate lamp (E19/1)
Right license plate lamp (E19/2)

If the "Standing lamp On" signal is still active, then a chime is sounded via the instrument cluster (A1) with the transmitter key (A8/1) removed and the driver door open.

For vehicles with code (550) Trailer hitch, the signal "standing lamp On" is transmitted by the driver-side SAM control unit with fuse and relay module (N10/1) to the trailer connection unit [AAG] control unit (N28/1), which applies the signal "standing lamp On" to the trailer hitch socket (13-pin) (X58).

Driver-side SAM control unit with fuse and relay module, location/task/design		GF54.21-P-4109T
Front passenger-side SAM control unit with fuse and relay module, location/task/design		GF54.21-P-4111T
Rear SAM control unit with fuse and relay module, location/task	Model 211.0	GF54.21-P-4130T
	Model 211.2	GF54.21-P-4130TA
Rear-end door control unit, location/task	Model 211.2	GF68.80-P-4002TA
Rotary light switch module, location/task/design		GF82.10-P-4104T
Trailer recognition control unit, location/task	with code (550) Trailer device	GF82.10-P-2106T
