Special vehicle multifunction control module (SVMCM [MSS]), location/task/design/function - GF82.25-P-4112T

MODEL 211.0/2 with CODE (450) Taxi version with CODE (934) Taxi emergency alarm unit

MODEL 211.0/2 with CODE (970) Polizei-Einsatzfahrzeuge

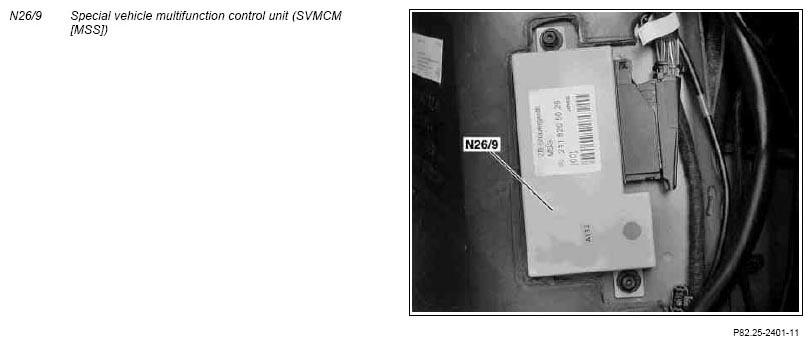

Fig 1: Identifying Special Vehicle Multifunction Control Unit (SVMCM[MSS])

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Special vehicle multifunction control unit, location		GF82.25-P-4102-01T
Special vehicle multifunction control unit, task		GF82.25-P-4102-02TT
Special vehicle multifunction control unit, design	The control module is in a robust plastic housing. The electrical connection to the other components takes place via a 33-pin connector.
Special vehicle multifunction control unit, function		GF82.25-P-4102-04T
