Alarm, Entertainment, Lighting, Switches & Wiper/Washer -- Basic Knowledge -- E350 (211.256)
>>
Basic Knowledge
>>
Special vehicle multifunction control module, location - GF82.25-P-4102-01T
Special vehicle multifunction control module, location - GF82.25-P-4102-01T

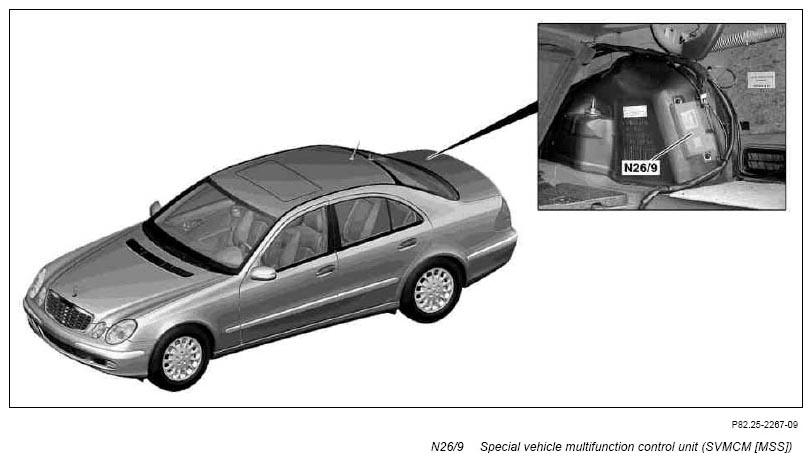

Fig 1: Identifying Special Vehicle Multifunction Control Unit - Shown On Model 211.0
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Shown on model 211.0
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
