Back-up wiping, function - GF82.30-P-3002T

MODEL 211.2 up to 31.5.06 except CODE (494) USA version except CODE (498) Japan version

MODEL 211.2 up to 30.6.06 with CODE (494) USA version with CODE (498) Japan version

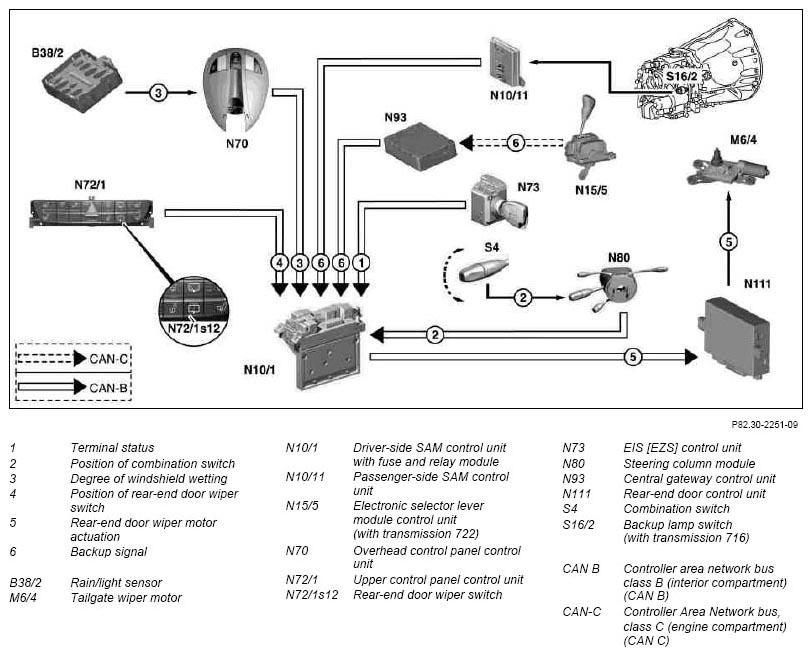

Fig 1: Back-Up Wiping Function Chart

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function requirements:

Circuit 15R ON
Windshield wiper in operation

Function

When engaging the reverse gear, the rear-end door wiper system is actuated depending on the position of the rear-end door wiper switch and the combination switch:

Rear-end door wiper switch not pressed:

Intermittent wipe with an intermission rate of 5 s

Rear-end door wiper switch pressed:

Wiper control synchronously to front windshield wiper (Continuous wiping or rain sensor mode)

Switching off rear wiper system

The rear window back-up wiping function is switched off either if there is no more backup signal or if the front windshield wiper is switched off.

Rain/light sensor location/task/function	B38/2	GF54.21-P-4123Q
Rear-end door wiper motor, location/task	M6/4	GF82.30-P-4003T
Driver-side SAM control unit with fuse and relay module, location/task/design	N10/1	GF54.21-P-4109T
Front passenger-side SAM control unit with fuse and relay module, location/task/design	N10/11	GF54.21-P-4111T
Electronic selector lever module control unit, location/task/design	N15/5 Transmission 722.6	GF27.19-P-5138P
Electronic selector lever module control unit, location/task	N15/5 Transmission 722.9	GF27.19-P-5140NT
Overhead control panel control unit, location/task/design	N70	GF82.20-P-4110T
Upper control panel control unit Location/task/design/function	N72/1	GF54.21-P-4105TS
Electronic ignition switch control unit, location/task	N73	GF80.57-P-4120T
Steering column module, location/task	N80	GF54.21-P-4125T
Central gateway control unit, location/task	N93	GF00.19-P-4100T
Rear-end door control unit, location/task	N111	GF68.80-P-4002TA
Combination switch, location/task/design/function	S4	GF82.30-P-2100PP
