Electronic selector lever module control unit, location/task - GF27.19-P-5140NT

TRANSMISSION 722.9 in MODELS 211, 219

Shown on model 211.0

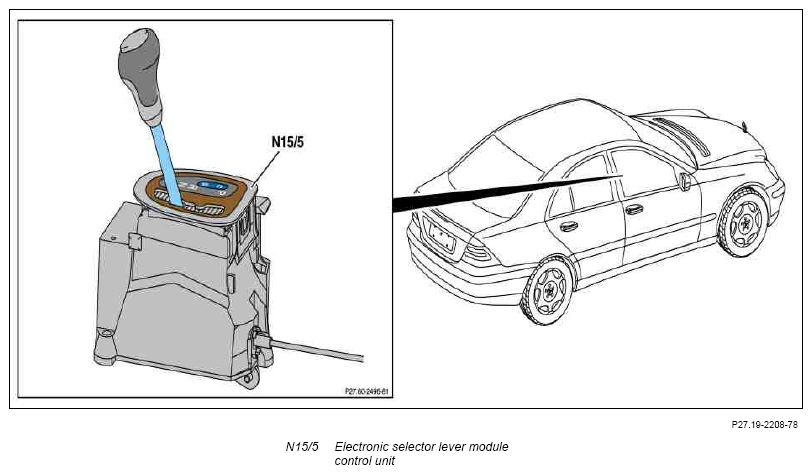

Fig 1: View Of Electronic Selector Lever Module Control Unit
G07283713Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Control unit for electronic selector lever module, location The control unit for the electronic selector lever module (N15/5) is located in the center console of the vehicle.
Control unit for electronic selector lever module, task Except code (428a) steering wheel shift buttons GF27.19-P-5138-02NT
With code (428a) steering wheel shift buttons GF27.19-P-5138-02NTL
