Retrofitting electronic vehicle log - AZ54.61-P-0001T

MODEL 211 except CODE (596) Heat-insulating glass with control unit in glove box

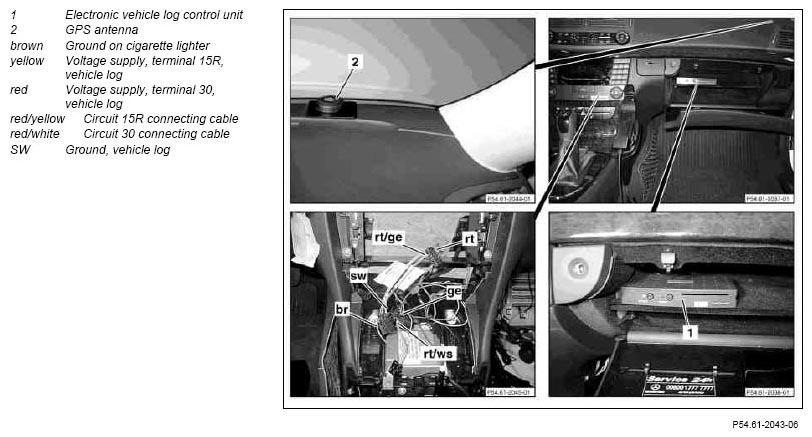

Fig 1: Identifying Electronic Vehicle Log Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
1	Connect no load current retention unit		*WH58.30-Z-1012-09A
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
2	Disconnect battery ground cable	Insulate cable terminal of ground lead to prevent unintentional contact between disconnected ground lead and ground point W10
		for model 211.004/006/016/023/026/028/042/043/061/065/070/076/080/082/083/606/616.	AR54.10-P-0003T
		for model 211.206/216/223/226/242/243/261/265/270/276/280/282/283.	AR54.10-P-0003TA
	Notes on battery	All models	AH54.10-P-0001-01A
3	Remove radio or navigation control panel
4	Remove ashtray from front center console
5	Unclip paneling on right side of instrument panel	Only when installing antenna on instrument panel.
6	Unclip right-hand knee bolster
7.1	Open engine hood and raise to vertical position	When installing GPS antenna in engine hood.
			AR88.40-P-1000T
8.1	Remove dust filter housing	When installing GPS antenna in engine hood.
	Replace dust filter	Vehicles with code 581 Comfort automatic air conditioning up to VIN end no. A635991 X170336	AP83.00-P-8381T
8.2	Remove combination filter housing	When installing GPS antenna in engine hood.
	Replace combination filter	Vehicles with code 580 Automatic air conditioning or Vehicles with code 581 Comfort automatic air conditioning as of VIN end no. A635992 X170337	AP83.00-P-8384T
	Install
9	Retrofit antenna for global positioning system (GPS)	In water trough of hood. Installation location is to be clarified with the customer. Short sleeve (24) is included in kit.	AN82.61-P-7474-04TX
		On instrument panel. Installation location is to be clarified with the customer.	AN82.61-P-7474-04TT
10	Retrofit wiring harness for electronic vehicle log		AZ54.61-P-0001-02T
11	Retrofitting control unit for electronic vehicle log	Installation in the glove compartment.	AZ54.61-P-0001-03T
12	Install remaining parts onto vehicle
13	Performing function check on electronic vehicle log		AZ54.61-P-0001-04T
