Install cross member and weld in - AR64.20-P-1060-03T
REPAIR MATERIALS CHART
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
| BR00.45-Z-1003-01A | Sealant, white, 310 ml, DB supply specification 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1003-05A | Cavity preservation, solvent-free (1 l container) | A 000 986 72 70 05 |
| BR00.45-Z-1001-13A | Blind rivet 6.4 14 | A 003 990 35 97 |
- Install, fit rear cross member (flush with holes, positive) and fix with clamping pliers.

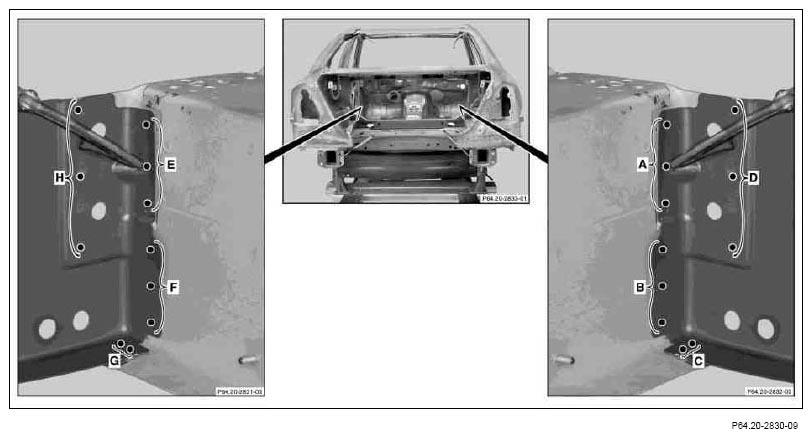

- Drill 6.5 mm dia. rivet holes (areas A and E).
- Remove rear cross member.
- Deburr rivet holes on both sides
In the event of damage of reinforcement (1) left and/or right.
- Install rear cross member, fit and fasten with pop-up rivets with locking thread and clamping pliers.
cross member (areas B, D, F and H).

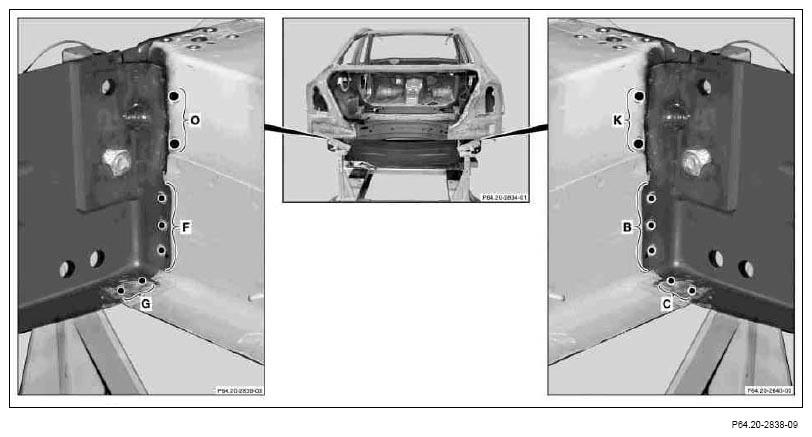

- Rivet rear cross member with Ø 6.4 14 mm Polygrip flat head rivets (areas A and E).
- 8.1 Install rear cross member, fit and fasten with straightening member and clamping pliers.

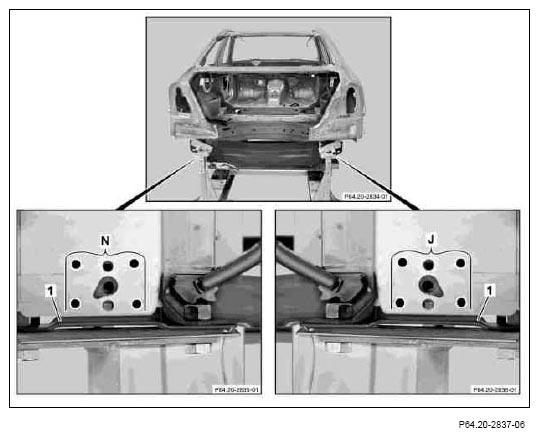

- 9.1 Drill 6.5 mm dia. rivet holes (areas J and N).
- 10.1 Remove rear cross member.
- 11.1 Deburr rivet holes on both sides
- 12.1 Install rear cross member, fit and fasten with straightening member and pop-up rivets with locking thread.
- 13.1 Rivet rear cross member with Ø 6.4 14 mm Polygrip countersunk head rivets (areas J and N).
- 14.1 Rivet rear cross member with 6.4 14 mm Polygrip flat head rivets (areas K and O).
