Remove/install on-board electrical system battery - AR54.10-P-0009SX
MODEL 216.3 up to 1.6.08 except CODE (809) Model year 2009
MODEL 221.0 /1 up to 1.6.08 except CODE (809) Model year 2009
Shown on model 221
| Remove/install | |||
|---|---|---|---|
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Notes on AGM battery | AH54.10-P-0002-01A | ||
| 1 | Disconnect ground line on the starter battery | AR54.10-P-0003SX | |
| 2.1 | Remove center paneling in trunk | Model 216.3, 221.0, 221.1 without code (Z07) Maximum protection | AR68.30-P-4600SX |
| 3 | Remove reinforcement at rear of rear shelf (3) | AR64.10-P-1200SX | |

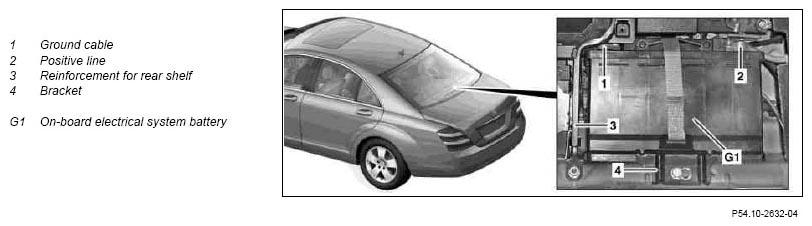

| 4 | Remove bracket (4) and pull out on-board electrical system battery (G1) slightly | *BA54.10-P-1027-01C | |
| 5 | Disconnect ground line (1) at negative terminal of on-board electrical system battery (G1) | ||
| 6 | Disconnect positive line (2) from positive terminal of the on-board electrical system battery (G1) | Installation: Pay attention to tight seating of the positive line (2) otherwise damage to the positive terminal and electrical system can occur. | |
| 7 | Detach vent hose from on-board electrical system battery (G1) | Installation: Observe kink-free routing of the bleed hose otherwise the venting of the on-board electrical system battery (G1) is not guaranteed. | |
| 8 | Remove on-board electrical system battery (G1) | ||
| Dispose of battery | OS54.10-P-0001-01Z | ||
| 9 | Install in the reverse order |
Battery
| Number | Designation | Model 216 | ||
| BA54.10-P-1027-01C | Bolt, battery bracket to body | M6 | Nm | 8 |
| M8 | Nm | 23 | ||
