Retrofit AUX socket - AZ82.60-P-0021SC

MODEL 216.3

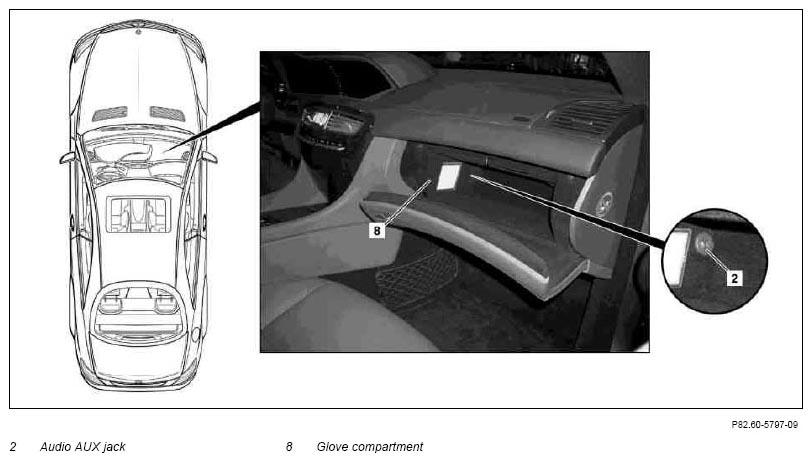

Fig 1: Identifying Audio AUX Jack And Glove Compartment

Courtesy of MERCEDES-BENZ USA

	Removing
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning  and caustic burns caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Disconnect battery ground line
			AR54.10-P-0003SX
	Notes on battery		AH54.10-P-0001-01A
	Notes on AGM battery		AH54.10-P-0002-01A
2	Remove COMAND controller unit	Only pull out to front until electrical connectors are accessible.	AR82.85-P-1100SC
3	Remove glove compartment
			AR68.10-P-1400SX
	Install
4	Retrofit AUX jack wiring harness	Wiring harness for audio AUX jack.	AZ82.60-P-0021-01SC
5	Install in the reverse order	Steps 3 to 1.
6	Activate audio AUX jack with STAR DIAGNOSIS	Perform variant coding with STAR DIAGNOSIS to activate audio AUX function of COMAND. STAR DIAGNOSIS Compact diagnosis system for passenger cars, Order number 6511 1801 00
7	Carry out function check	Check audio AUX function as per operating instructions in vehicle.

PARTS ORDERING NOTES

Part no.	Designation	Quantity
B6 782 31 18	Wiring harness for audio AUX jack	1
