Remove/install TPM [RDK] antenna - AR40.15-P-0300SX
MODEL 216 with CODE (475) Tire pressure monitor (Siemens)
MODEL 221 with CODE (475) Tire pressure monitor (Siemens) except CODE (Z07) Top protection
| Remove/install | |||
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| 1 | Switch off ignition | ||

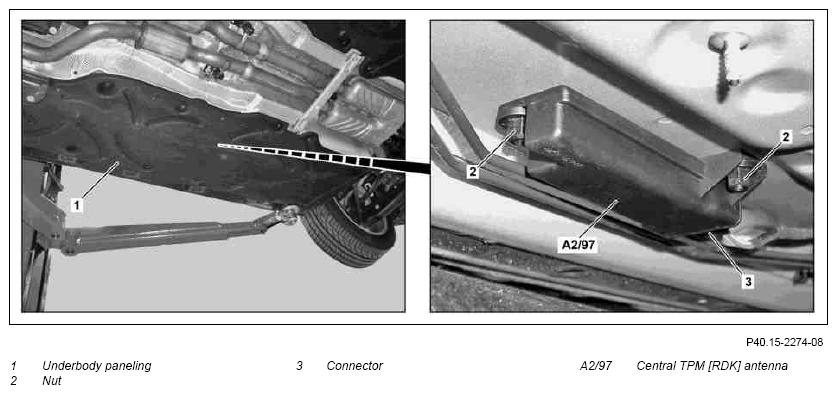

| 2.1 | Loosen left side of the right underfloor paneling (1) | AR61.30-P-1001SX | |
| 3 | Unscrew nuts (2) and remove central TPM [RDK] antenna (A2/97) | ||
| 4 | Unlock plug (3) and unplug | ||
| 5 | Install in the reverse order | ||
| 6 | Read out fault memory with STAR DIAGNOSIS and erase if necessary. | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
