Connect STAR DIAGNOSIS and read out fault - AD00.00-P-2000-04A

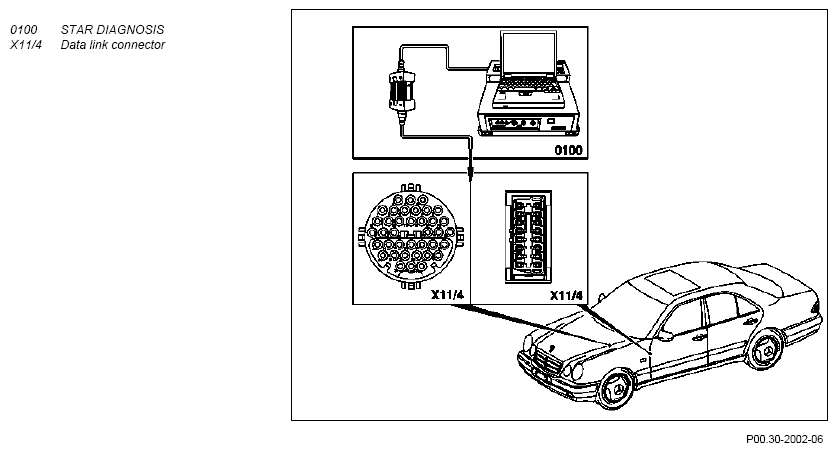

Illustrated on model 210

Fig 1: Identifying Star Diagnosis Connection With Data Link Connector

Courtesy of MERCEDES-BENZ USA

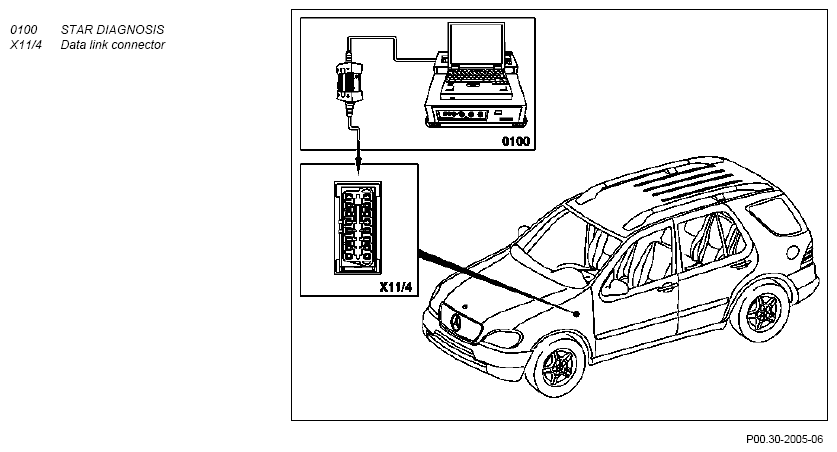

Illustrated on model 163

Fig 2: Identifying Star Diagnosis Connection With Data Link Connector

Courtesy of MERCEDES-BENZ USA

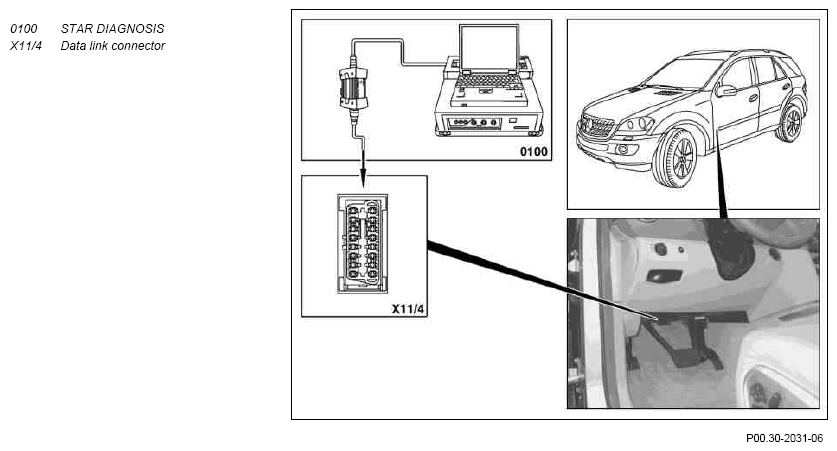

Shown on model 164.1

Fig 3: Identifying Star Diagnosis Connection With Data Link Connector

Courtesy of MERCEDES-BENZ USA

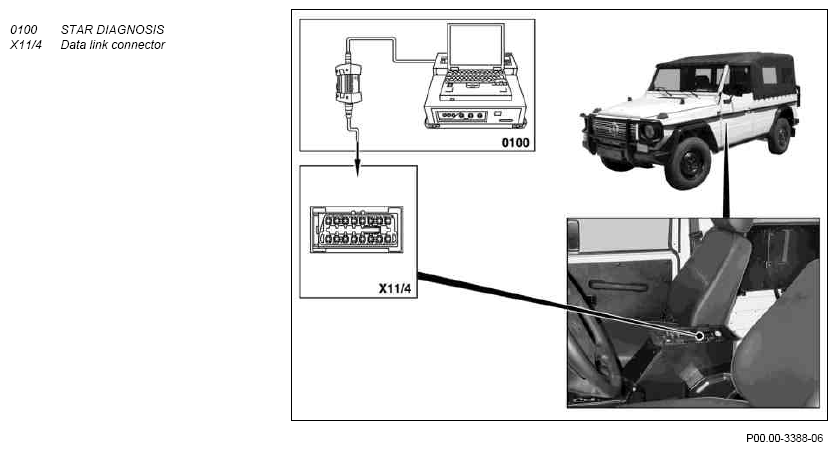

Illustrated on model 461.302

Fig 4: Identifying Star Diagnosis Connection With Data Link Connector

Courtesy of MERCEDES-BENZ USA

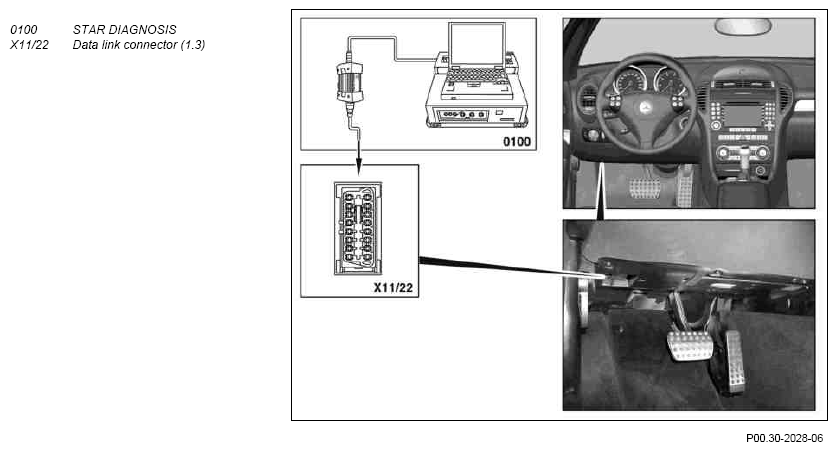

Shown on model 171.4

Fig 5: Identifying Star Diagnosis Connection With Data Link Connector

Courtesy of MERCEDES-BENZ USA

1. Connect Star Diagnosis (0100).
2. Switch on ignition.
3. Start the Diagnosis Assistance System.
4. Select the model series in the menu.

   The work procedures in the diagnosis program are menu-assisted.

5. Disconnect STAR DIAGNOSIS (0100).

   Stored faults which may be caused by disconnecting cables or by simulation during testing operations must be deleted in the diagnostic trouble code memory following completion of the operations.
