Remove, install tire pressure monitoring system control unit - AR40.15-P-0100SX
MODEL 216, 221 with CODE (475) Tire pressure monitor (Siemens)
| Remove/install | |||
| 1 | Read in variant coding of the TPM [RDK] control unit (N88) in STAR DIAGNOSIS | When replacing the TPM control unit (N88) |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 2 | Move the front passenger seat into the rearmost position | ||

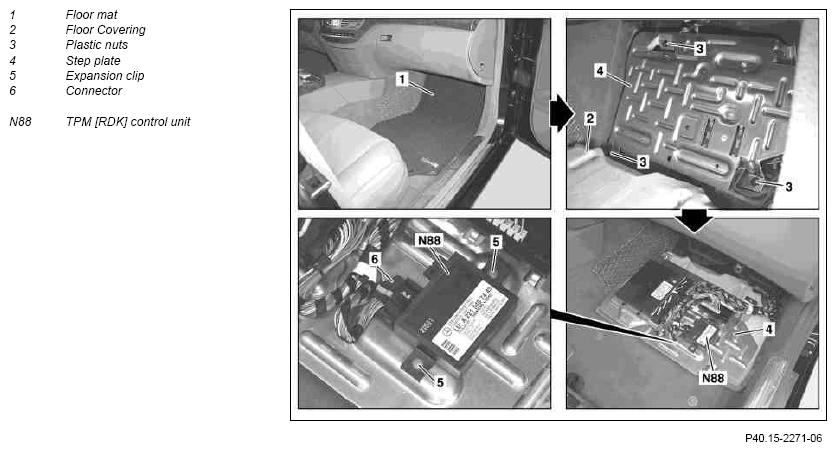

| 3 | Remove floor mat (1) and fold back floor covering (2) | ||
| 4 | Unscrew plastic nuts (3) and put step plate (4) down in the front passenger footwell with lines connected | ||
| 5 | Remove expansion clips (5) and remove TPM [RDK] control unit (N88) | ||
| 6 | Unlock plug (6) and unplug | ||
| 7 | Install in the reverse order | ||
| 8 | Read out fault memory with STAR DIAGNOSIS and erase if necessary. |
