Remove/install actuator motor for left defroster flap - AR83.10-P-2004SX

MODEL 216.3, 221.0/1

Shown on model 221

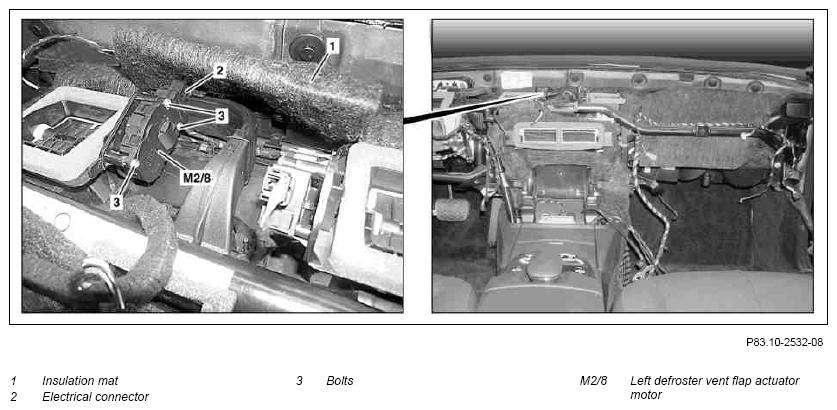

Fig 1: Identifying Remove/Install Components Of Actuator Motor For Left Defroster Flap

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove instrument panel	Model 216	AR68.10-P-1000SC
		Model 221	AR68.10-P-1000SX
2	Fold insulation mat (1) upwards
3	Remove left defroster vent flap actuator motor (M2/8) from air conditioner housing	Installation  : When replacing, match the position of left defroster flap drive shaft to the position of the actuating drive at the left defroster vent flap actuator motor (M2/8).
4	Install in the reverse order
5	Teach in and normalize left defroster vent flap actuator motor (M2/8)	Menu item: control unit adaptations, teach in actuator motors, normalize actuator motors.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnostic system	*WH58.30-Z-1048-13A

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnostic system, Compact Passenger Car	6511 1801 00
