Remove/install front central operating unit. - AR54.21-P-0500SC
MODEL 216.3
| Remove/install | |||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1.1 | Stage basic data of front central operating unit (A40/9) in STAR DIAGNOSIS | When replacing the front central operating unit (A40/9). |
|
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnostic system | *WE58.40-Z-1013-06A | ||
| 2 | Switch off ignition and withdraw transmitter key or Keyless Go start/stop button from the EIS [EZS] control unit | ||
| 3 | Remove turn/push control | AR54.21-P-0501SX | |

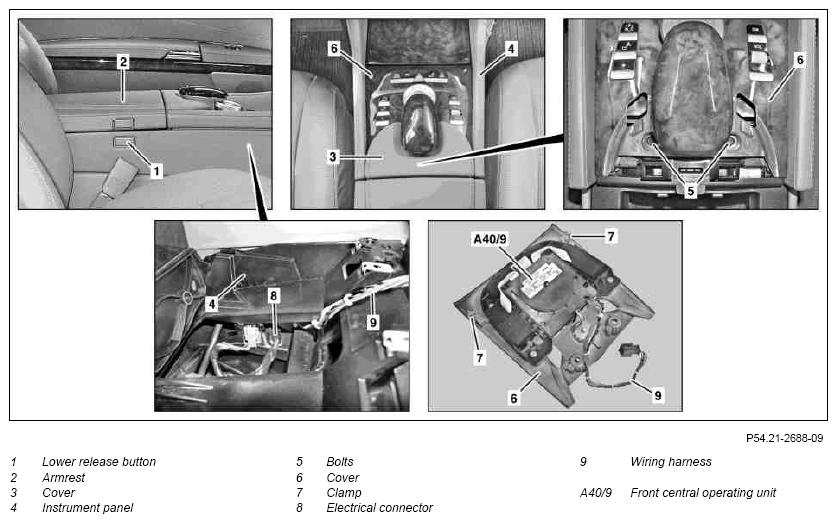

| 4 | Press lower release button (1) and fold armrest (2) upright toward rear | ||
| 5 | Unclip cover (3) from instrument panel (4) | Fig 2 | |
| 6 | Remove bolts (5) | ||
| 7 | Lift cover (6) to unclip from clips (7) | ||
| 8 | Disconnect electrical connector (8) and unclip connector of electrical wiring harness (9) from mount on instrument panel (4) | ||
| 9 | Guide electrical wiring harness (9) out of instrument panel (4) and remove cover (6) with front central operating unit (A40/9) | ||
| 10.1 | Remove front central operating unit (A40/9) from cover (6) | Only when replacing front central operating unit (A40/9). | |
| 11 | Install in the reverse order |
WORKSHOP EQUIPMENT/MB TESTERS (SEE WORKSHOP EQUIPMENT MANUAL)
| WE58.40-Z-1013-06A | STAR DIAGNOSIS Compact diagnosis system for passenger cars, order number | 6511 1801 00 |
