Remove/install Night View Assist control unit - AR54.30-P-3100SX
MODEL 216.3, 221.0 /1 with CODE (610) Night vision assist
Shown on model 221
| Remove/install | |||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Switch off ignition and withdraw transmitter key or Keyless Go start/stop button from the EIS [EZS] control unit | ||

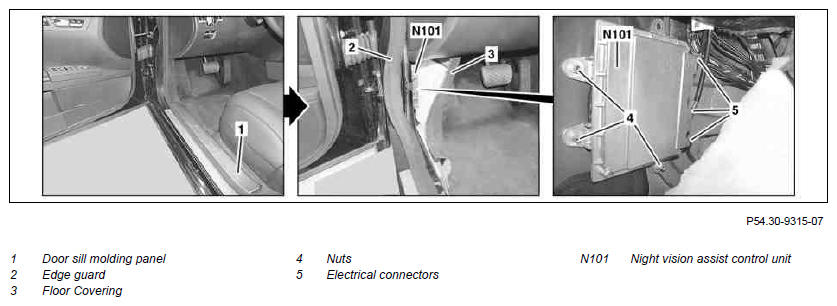

| 2 | Remove left door sill molding panel (1) | ||
| Model 221.0/1 without code (Z07) Top protection | AR68.30-P-4100SX | ||
| Model 221.1 with CODE (Z07) Top protection | AR68.30-P-4100SXS | ||
| 3 | Loosen edge guard (2) in the lower area of the A-pillar | ||
| 4 | Unhook floor covering (3) and push to one side | ||
| 5 | Unscrew nuts (4) and remove Night View Assist control unit (N101) | ||
| 6 | Disconnect electrical connectors (5) | ||
| 7 | Install in the reverse order | ||
| 8 | Calibrate Night View Assist control unit (N101) | When replacing Night View Assist control unit (N101). | |
| Calibration target for Night View Assist. | Test equipment for electronic systems gotis://E_82_03.0 | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
