Remove/install rear axle shaft flange and angular ball bearing - AR35.20-P-0130SX

MODEL 216 (except 216.379)

MODEL 221 (except 221.179)

MODEL 221

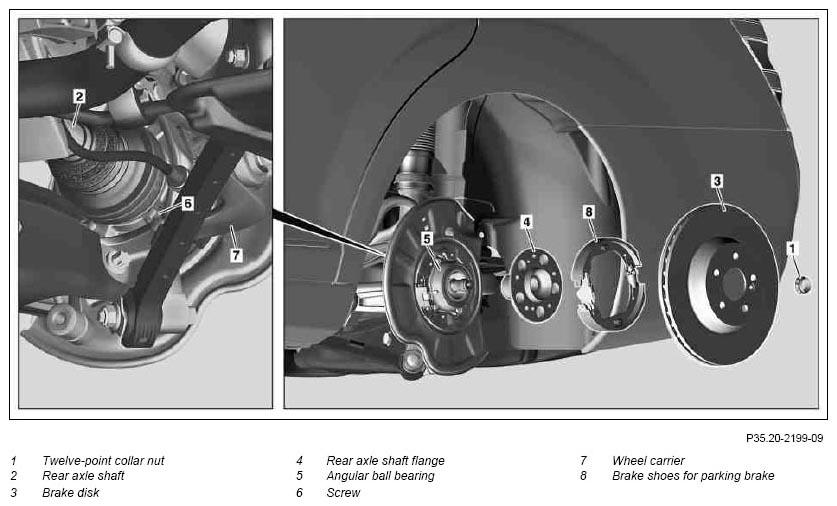

Fig 1: Identifying Rear Axle Shaft Flange And Angular Ball Bearing Remove/Install Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

20.1.10

Special tool 140 589 01 34 00 replaced by special tool 211 589 02 34 00

see AR35.20-P-0130-02TX

	Removing
	Notes on self-locking nuts and bolts		see AH00.00-N-0001-01A
	While working on the rear axle care must be taken to ensure that the surface of all aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the parts will be affected
1	Remove wheel.
	Remove/install wheels		see AP40.10-P-4050SX
2	Detach twelve-point collar nut (1) from rear axle shaft (2)		see AR35.30-P-0115-01SX
			see *BA35.30-P-1001-01I
			Fig 9
3	Move electronic parking brake into assembly position using STAR DIAGNOSIS
4	Remove brake disk (3)		see AR42.10-P-0220SX
5	Remove brake shoes (8)		see AR42.20-P-0530SX
6	Pull rear axle shaft flange (4) out of angular contact ball bearing (5)		see AR35.20-P-0130-06SX
			Fig 2
			Fig 3
7	Detach angular contact ball bearing (5) from wheel carrier (7)	To unscrew the bolts (6, 4 pieces) press the rear axle shaft (2) slightly to one side.
8	Clean water drain in wheel carrier (7)		see AR35.20-P-0115-03CW
9	Pull bearing inner race off the rear axle shaft flange (4)		see AR35.20-P-0130-02TX
			Fig 5
			Fig 7
			Fig 8
	Install
10	Mount angular contact ball bearing (5) on wheel carrier (7)		see *BA35.20-P-1001-06A
11	Pull rear axle shaft flange (4) into angular contact ball bearing (5)		see AR35.20-P-0130-07SX
			Fig 4
			Fig 5
12	Install brake shoes (8)		see AR42.20-P-0530SX
13	Install brake disk (3)		see AR42.10-P-0220SX
14	Mount and secure twelve-point collar nut (1) on rear axle shaft (2)	Install new twelve-point collar nut (1).	see AR35.30-P-0115-01SX
			see *BA35.30-P-1001-01I
			Fig 9
15	Detach wheel
	Remove/install wheels		see AP40.10-P-4050SX

HUB

Number	Designation		Model 216	Model 221
BA35.20-P-1001-06A	Wheel bearing to wheel carrier	Nm	70	70

REAR AXLE SHAFT

Number	Designation					Model 216 except model 216.379	Model 221 without code Z07/Z07+Z19 except model 221.179
BA35.30-P-1001-01I	Collar nut, rear axle shaft to rear axle shaft flange	self-locking	M26		Nm	350	350
		not self-locking	M26	Stage 1	Nm	170	170
				Stage 2	∠°	45	45
		not self-locking	M29	Stage 1	Nm	-	-
				Stage 2	∠°	-	-

Fig 2: Identifying Press (202 589 04 43 10)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Puller (211 589 01 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Extraction And Insertion Tool (210 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Insertion Tool (211 589 00 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Puller (001 589 50 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Chuck (211 589 02 34 00)

Courtesy of MERCEDES-BENZ USA

Fig 8: Identifying Thrust Piece (124 589 02 34 00)

Courtesy of MERCEDES-BENZ USA

Fig 9: Identifying Wrench Socket (220 589 01 09 00)

Courtesy of MERCEDES-BENZ USA
